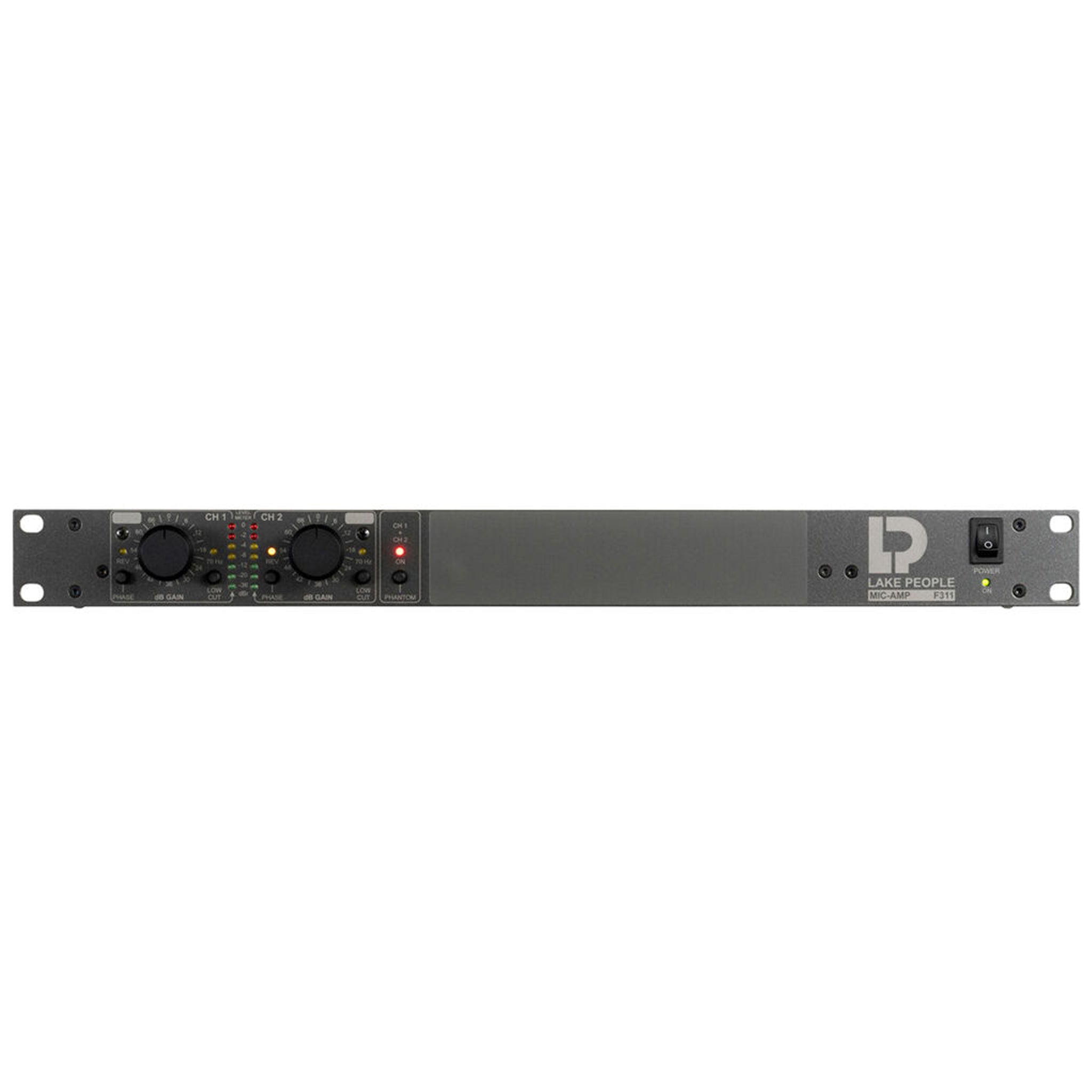

Lake People F311-D 2-Channel Microphone Preamplifier
Couldn't load pickup availability
Guaranteed Safe Checkout
Description
The F-SERIES from Lake People covers absolutely high-level audio products with outstanding features, best technical data and perfect craftsmanship. MIC-AMP F311-D is a two-channel ultra-low noise microphone preamplifier with excellent audio performance and more than common features. Ideal for "on-loation" recording, bypassing insufficient mixing console preamps or " direct-to-tape" sessions. Gain is settled with costly 12-step switches and so exactly reproducable and equal for both channels. The simple and cheap gain adjustment via potentiometers we leave to the competition. The amp is mains powered via a ISC/CEE socket with either 230 or 115 V AC (internally switchable). Take a look at ADC F444 to create a second-to-none compact recording device !
Features
• Elektronisch symmetrische Ein- und Ausgänge über XLR
• Schaltbarer Lo-Cut, 12 dB/Okt. mit 70 Hz Eckfrequenz
• 7-stufige Pegelanzeige, -36 … 0 dBr, intern kalibrierbar
• präzise Stufenschalter zur Einstellung der Verstärkung
• Phantomspeisung 48 Volt für je 2 Kanäle schaltbar
• extrem breitbandig 5 Hz - 150 kHz @ - 3dB
• 0 ... +66 dB schaltbar in 12 Stufen à 6 dB
• Noise -129 dB bei 60 dB Verstärkung
• Unsymmetrische Ausgänge über Cinch
SCOPE OF DELIVERY
1x MIC-AMP F311-D
1x Bedienungsanleitung
1x Netzkabel
TECHNICAL DATA
Item number: 1006620
Dimensions: 483 x 44 x 166 mm (BxHxT)
output impedance: < 30 Ohm
input impedance: 5 kOhm
additional features: Lo-Cut, 48V Phantomspeisung, Phasenumkehr, 4-stufige Pegelanzeige
housing: 19" / 1 HE
max. output level: > +25 dBu
max. input level: > +21 dBu
mic gain: 0 - +66 dB
Noise: -129 dB (@ 60 dB gain)
power supply: Internal 230 V / 115 V AC
THD+N (@ -1 dBFs): < 0,001 %
frequency range: 5 Hz - 70 kHz (-3 dB)
