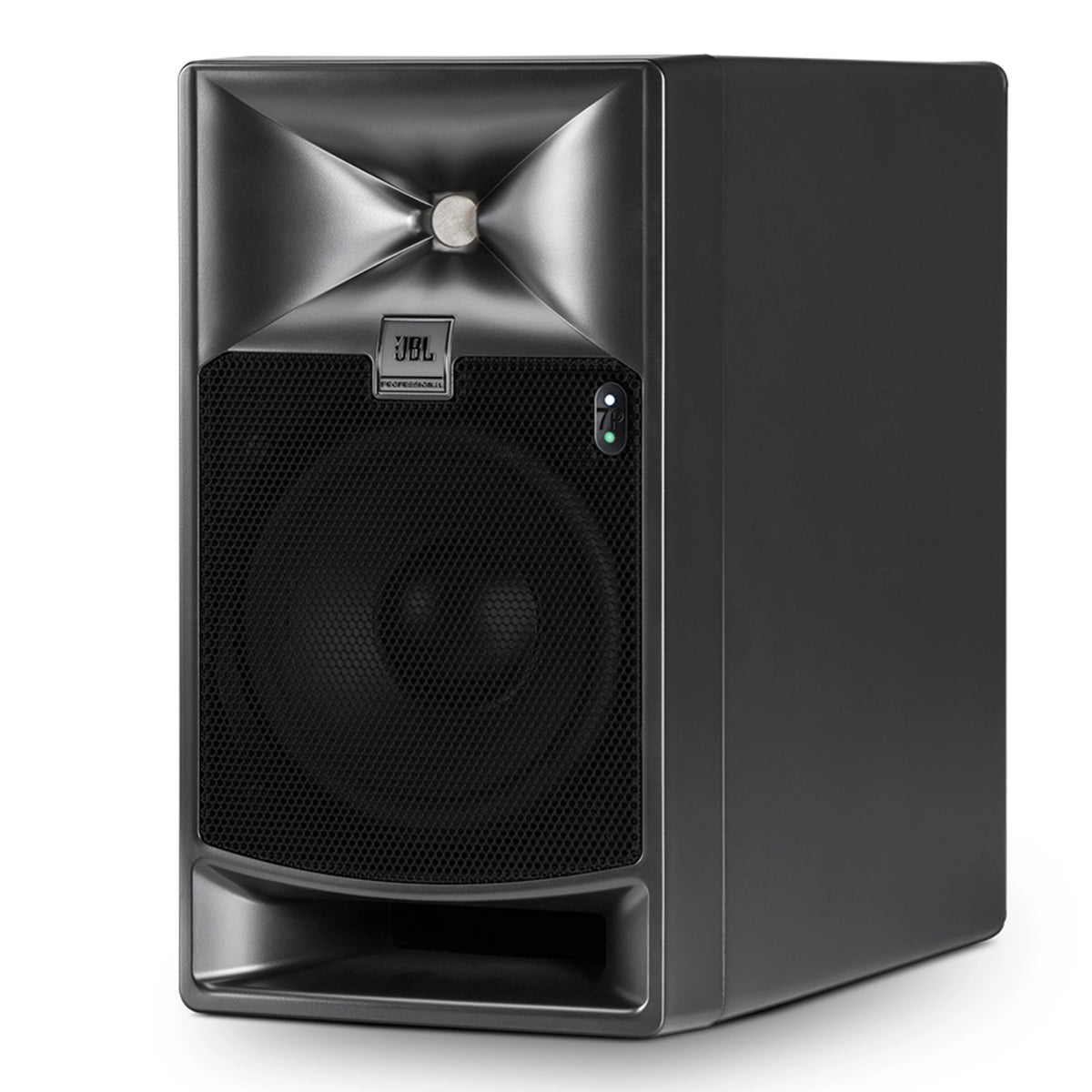

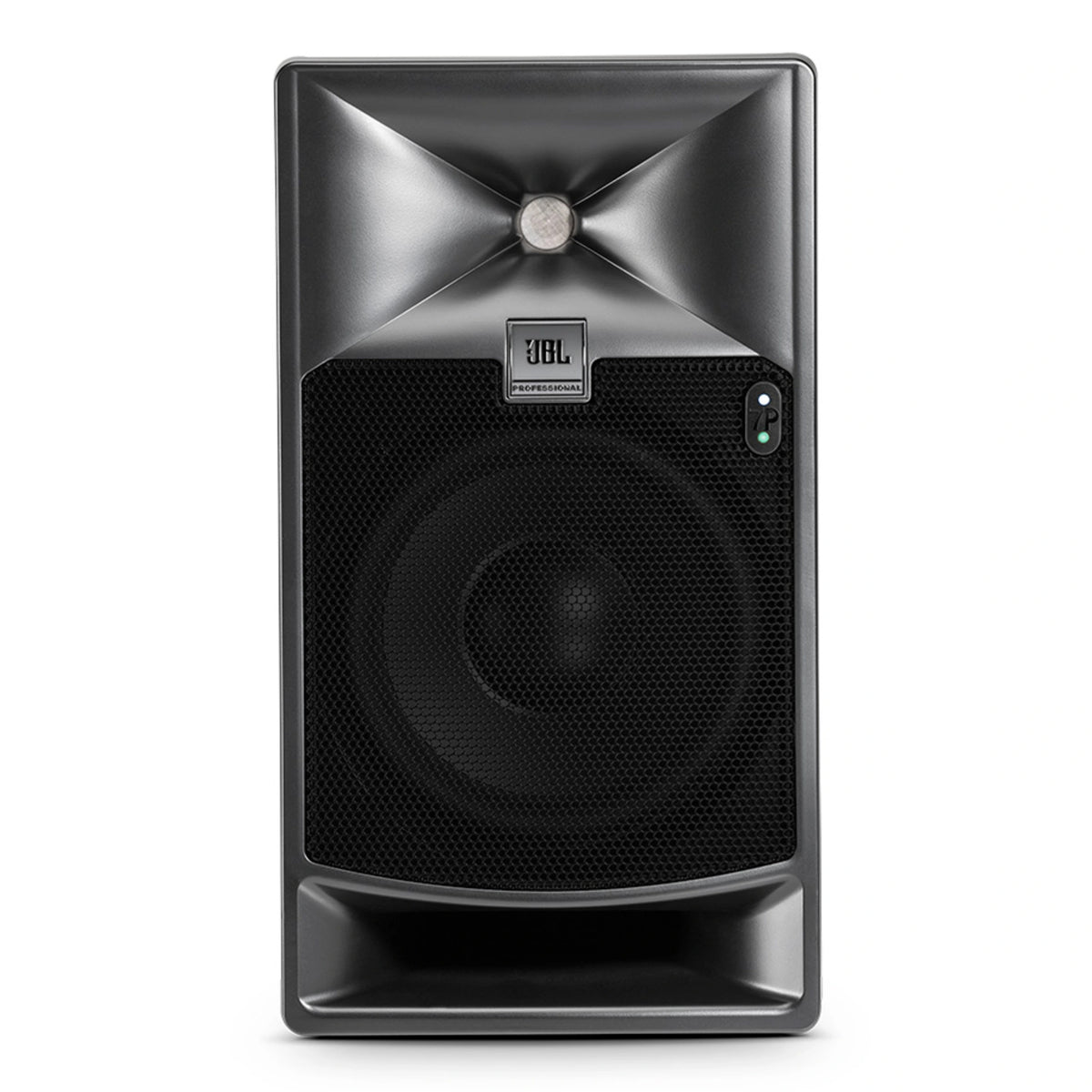

JBL 705P 5" Bi-Amplified Master Reference Monitor

The JBL 705P is the self-powered reference monitor for critical music recording, film post and broadcast production applications. The JBL 705P leverages the same patented driver technologies and JBL's renowned Image Control Waveguide found in the 708P and the flagship M2, but with a smaller footprint. Despite its compact size, JBL 705P delivers an eye-opening level of output, well beyond that of existing, comparably-sized studio monitors, for greater dynamic range and greater working distances. The speakers deliver an expansive soundstage and pristine accuracy in a broad range of rooms.

Features:

• Next-generation JBL driver technology
• Patented JBL Image Control Waveguide
• Integrated dual amplification system with internal floating-point DSP
• Comprehensive room EQ and delay controls
• Compact enclosures for easy placement and installation

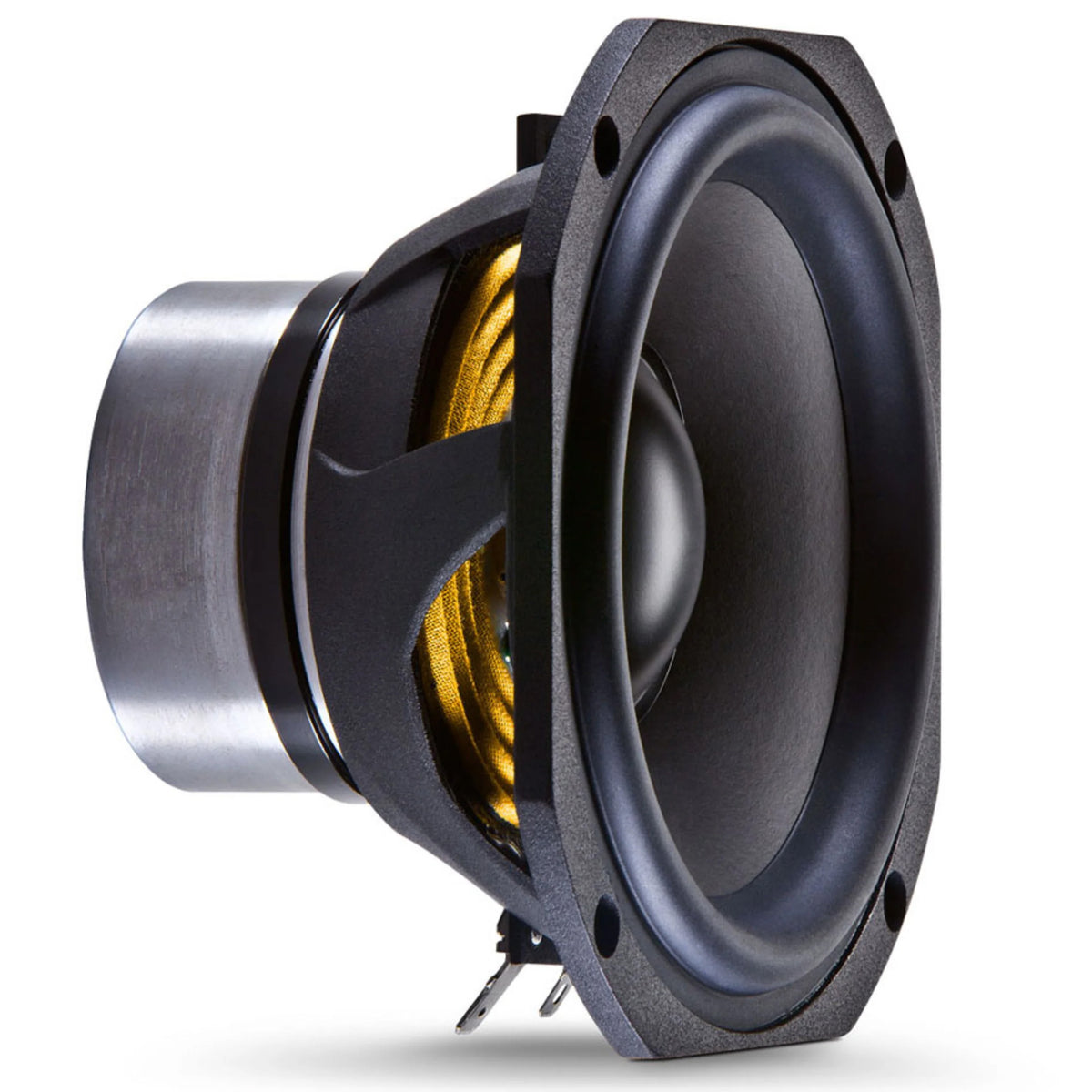

• JBL 725G low-frequency transducer delivers low-distortion and high SPL

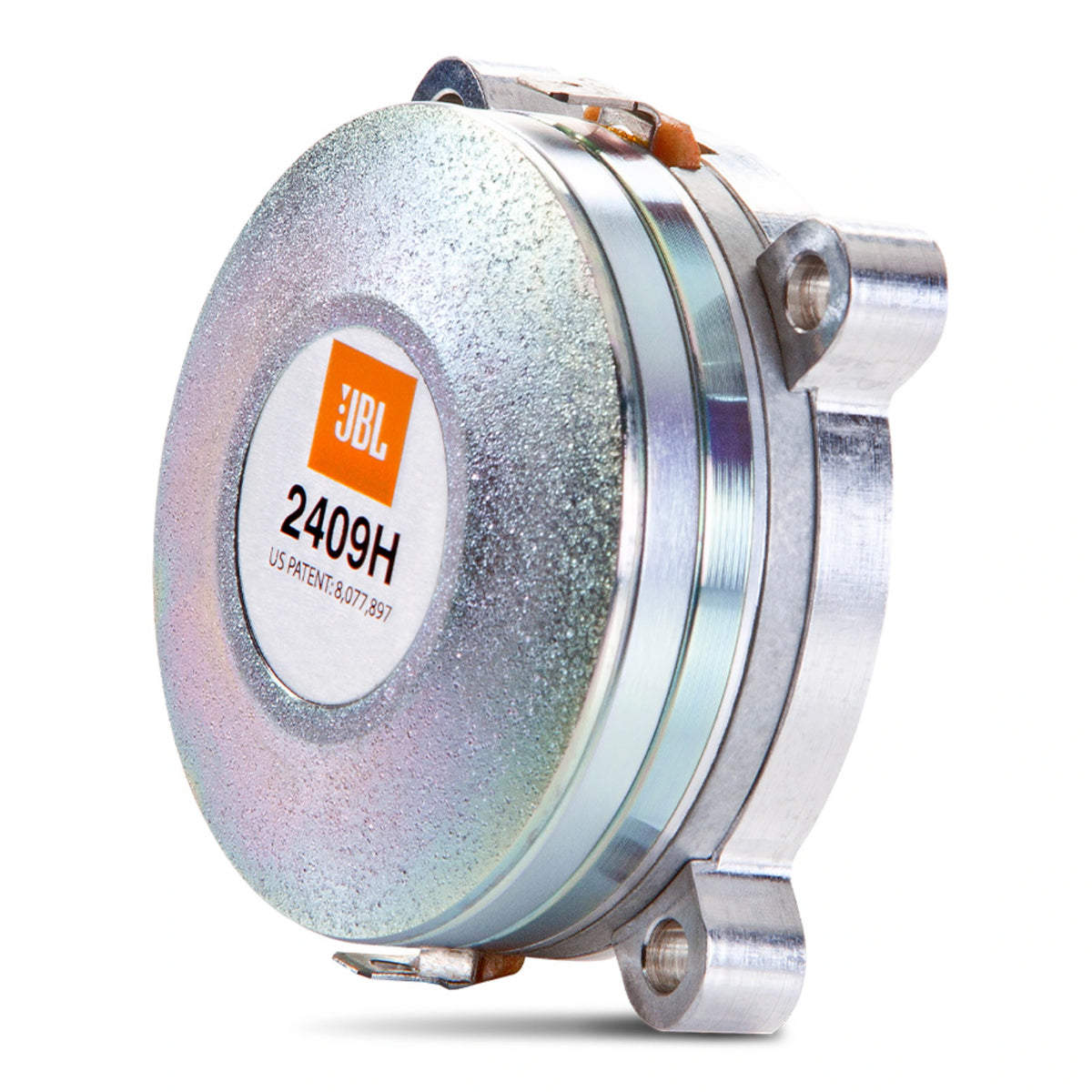

• JBL 2409H high-frequency transducer with low-mass annular diaphragm
• JBL-designed patented Image Control Waveguide
• 2-channel Class-D amplifier HF 250W / LF 250W
• 192 kHz, 32-bit floating point processing
• 12 bands of Room EQ, 8 bands of User EQ
• 6 factory presets, 6 user-defined presets
• 18 milliseconds of Room Delay, 150 milliseconds of AV Sync Delay
• 1 x XLR-1/4" balanced combination analog audio input
• 1 x XLR AES3 format digital input with 1 x XLR pass-through output
• Digital input accepts sample rates of up to 192 kHz
• User-enabled sample rate converters
• RJ-45 network connection for HARMAN HiQnet connectivity

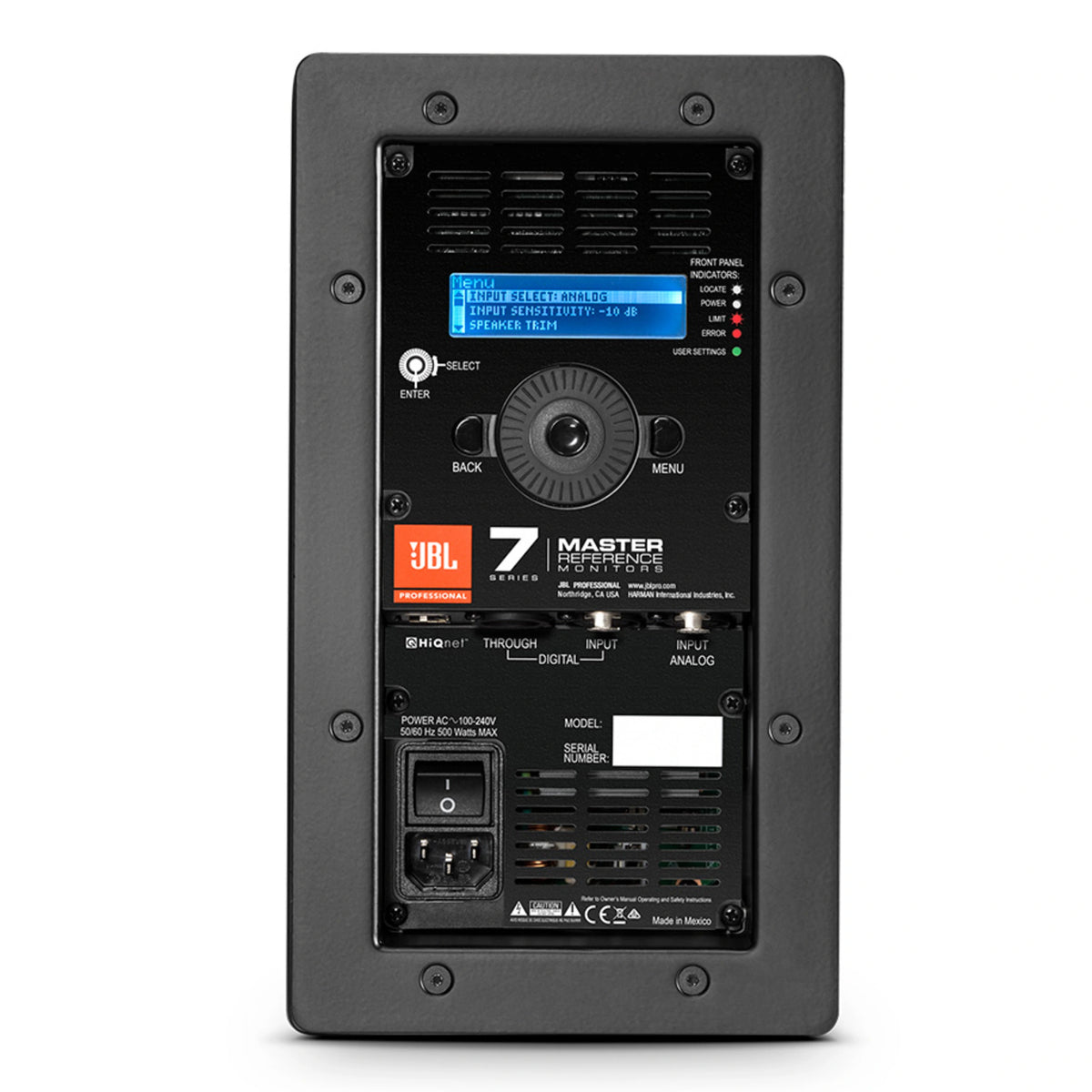

• Rear-panel multi-function controls and LCD display allow selection of input sensitivity, input trim, Room EQ, User EQ, Room Delay, AV Sync Delay
• Top and bottom mounting points; birch plywood cabinets reinforced for safe mounting
• Protective steel grilles
