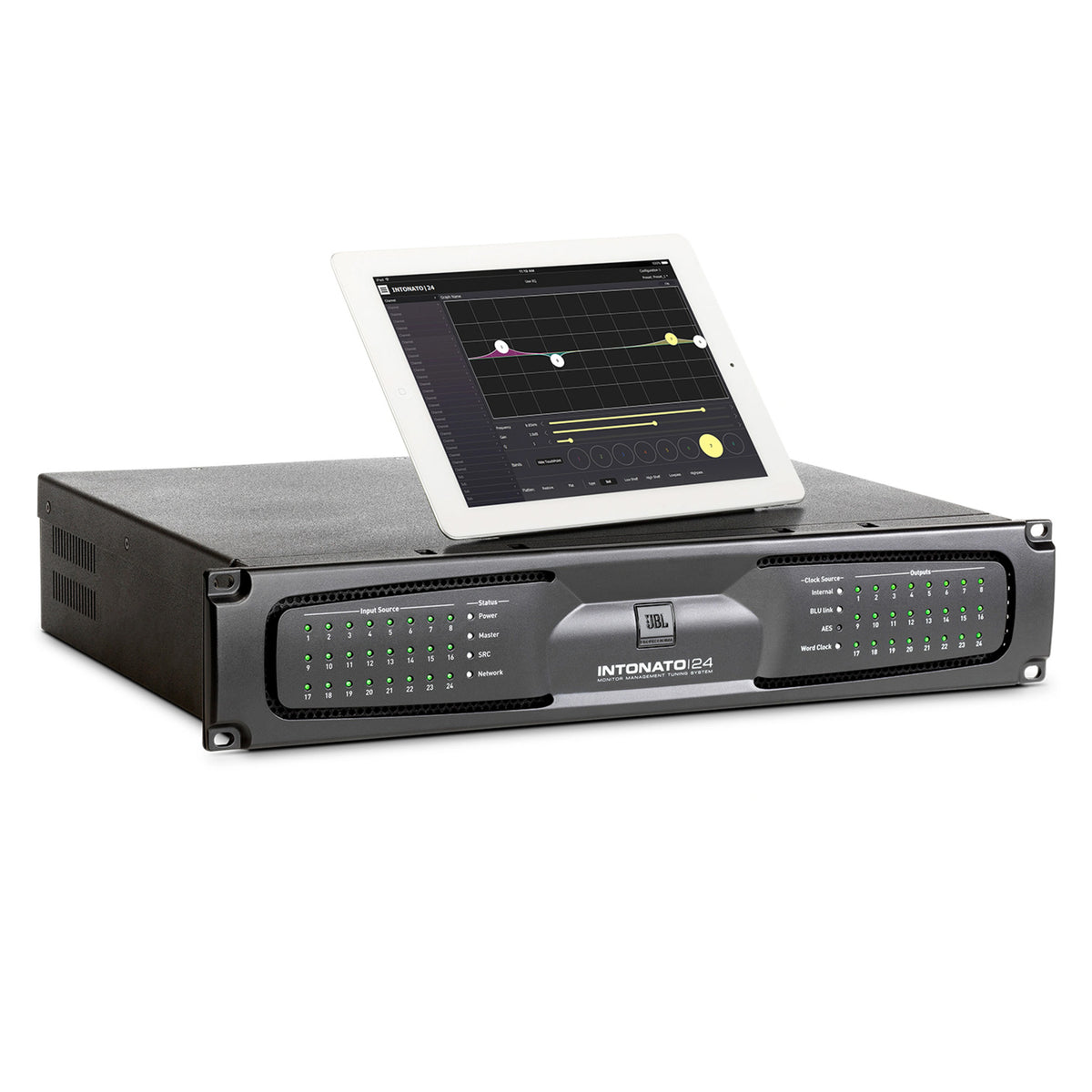

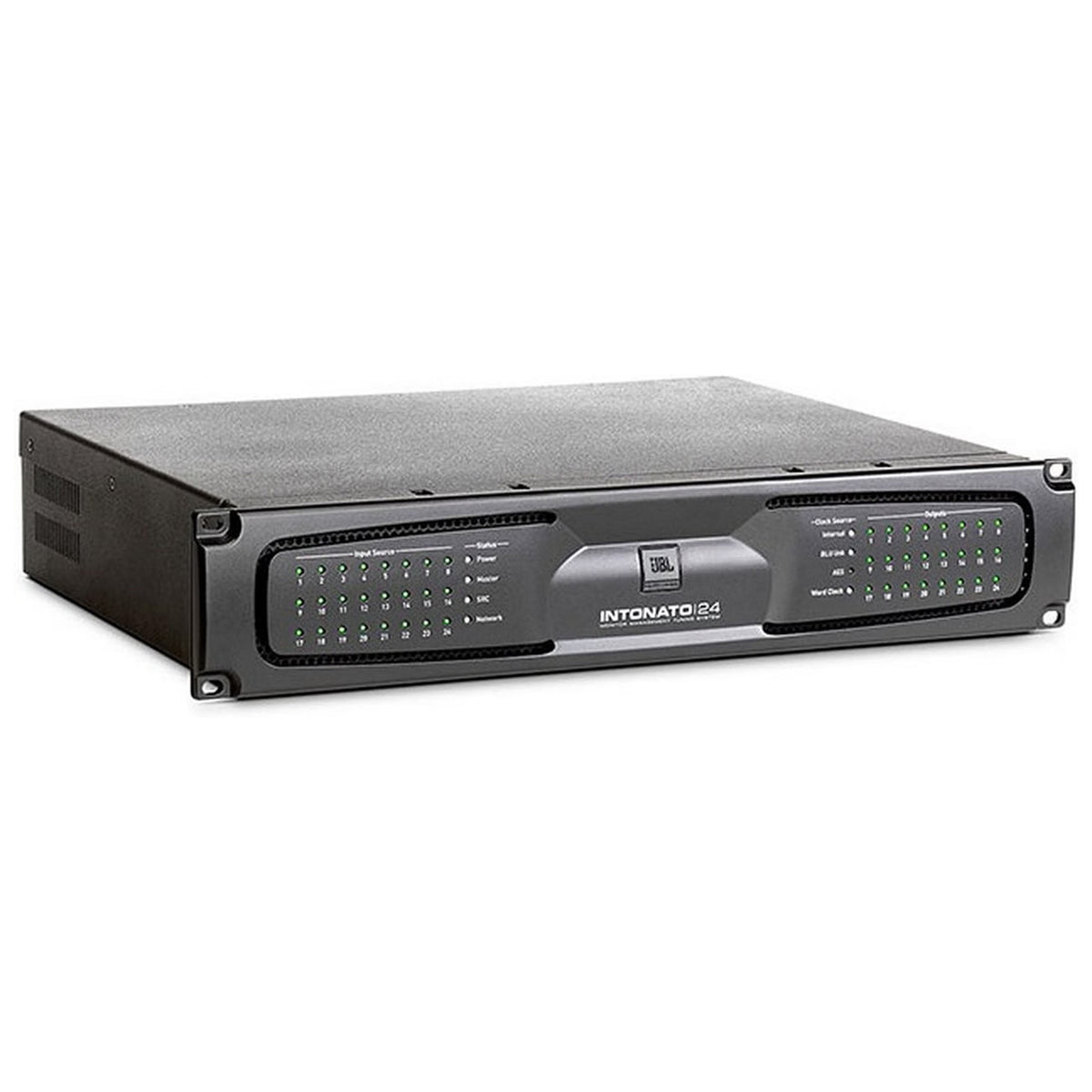

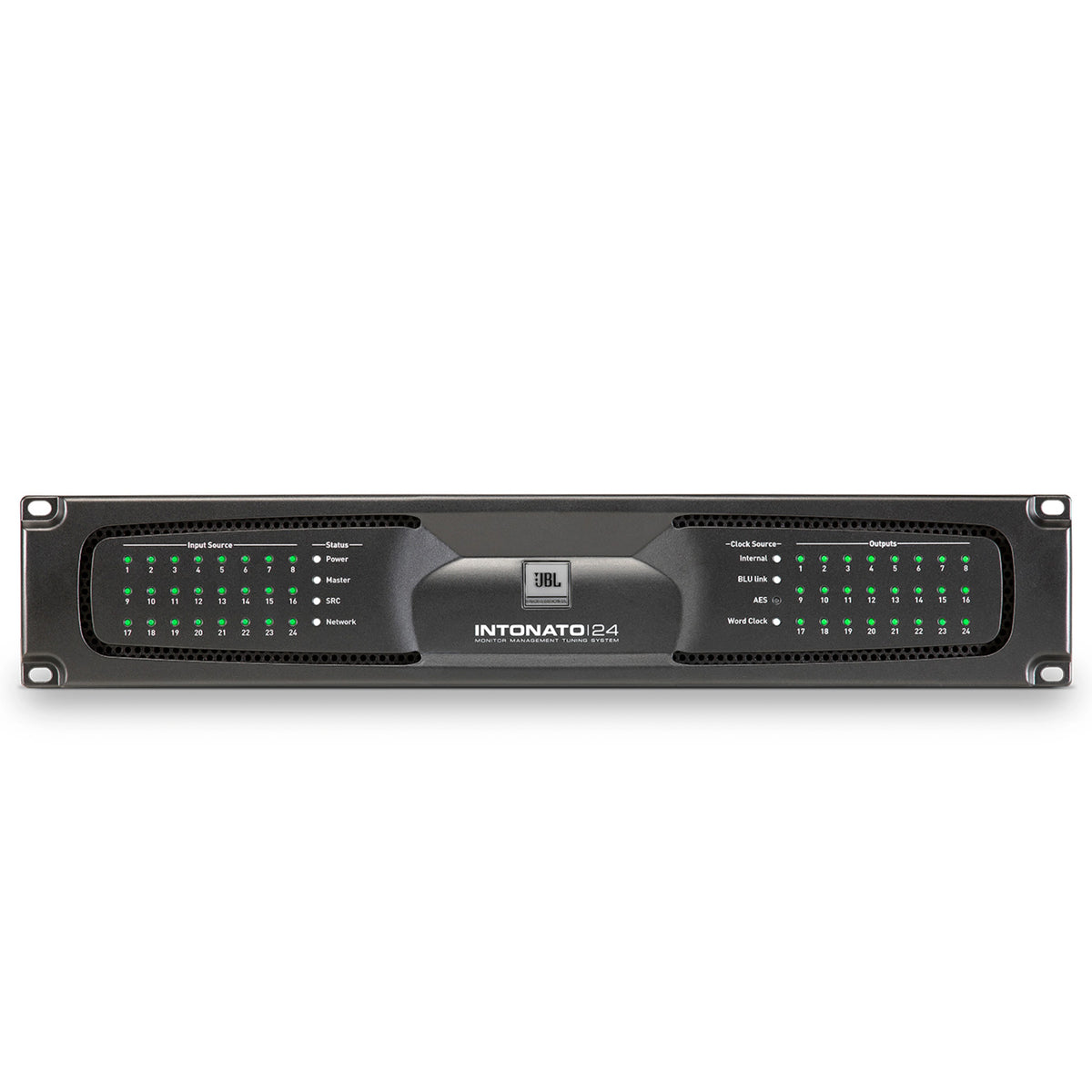

JBL Intonato 24 24-Channel Monitor Management Tuning System

The JBL Intonato 24 Monitor Management Tuning System provides easy setup, automated calibration and comprehensive control of professional monitoring systems. Housed in a 2U rack-mount enclosure, Intonato 24 precisely calibrates and controls up to 24 speakers configured as stereo, surround or immersive audio systems. You can create and instantly recall customized routing of up to 24 analog, digital and networked audio sources. Included software and an optional Desktop Controller put the system's powerful monitoring features at your fingertips. Intonato 24 delivers the benefits of a precisely calibrated system, and takes control room monitoring to the next level. Intonato, from the Latin verb Intonare meaning "tuned," "matched," "in tune," describes a primary attribute of all speakers in the ideal control room monitoring environment.

Features:

• Compatible with all professional studio monitors
• Input connections for 24 analog, AES /EBU Inputs; up to 256 channels of networked audio in HARMAN BLU link or Dante format (with optional BLUDAN interface)
• Software-controlled analog input sensitivity switches, level indicators and gain trims

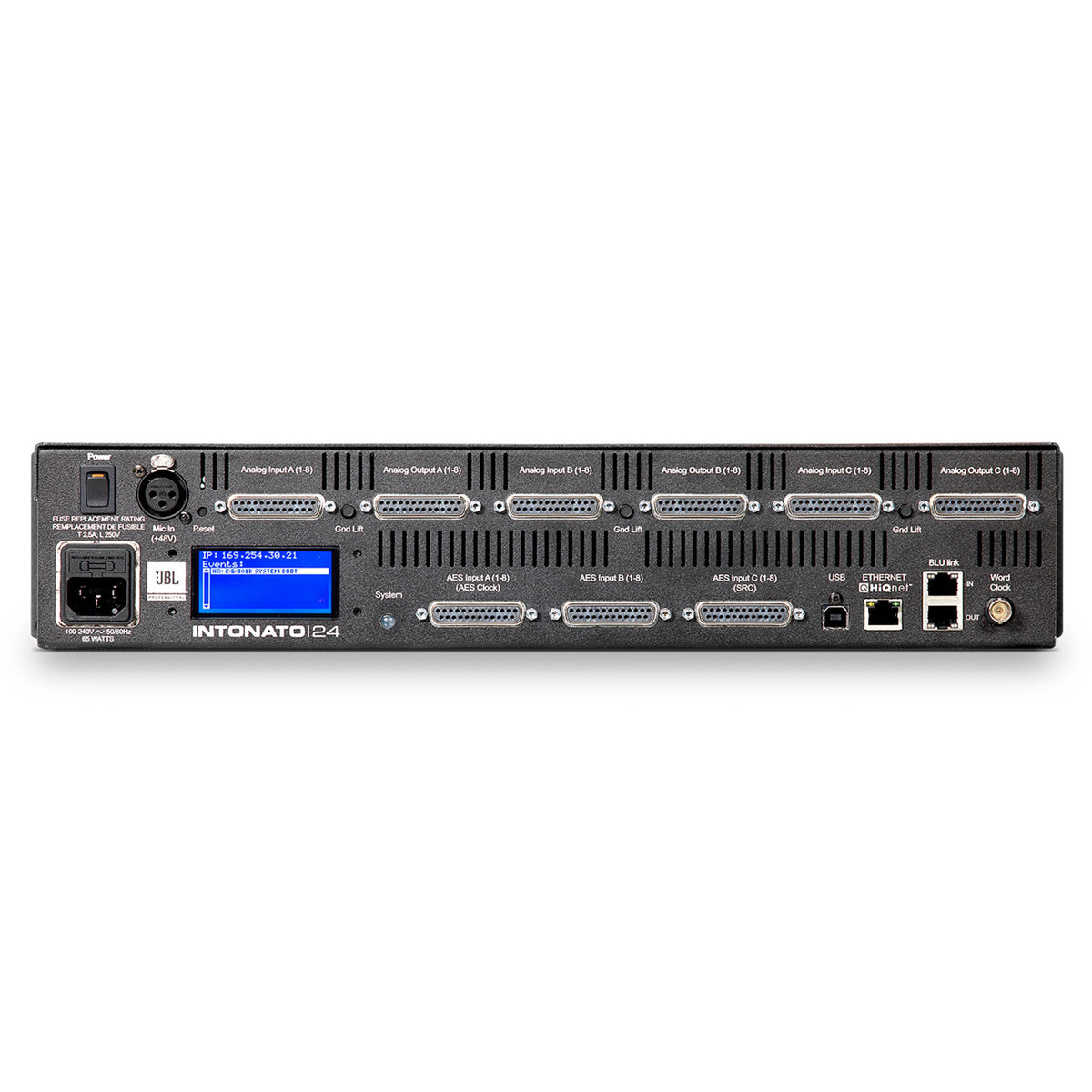

• Output connections include 24 analog outputs to powered speakers and power amplifiers; BLU link output allows networked connection to HARMAN Crown power amplifiers
• Selectively monitor via one or more monitoring systems of up to 24 speakers
• Volume, Mute, and Dim controls, plus individual speaker Mute and Solo
• Automated Speaker Calibration with included microphone precisely balances, tunes and aligns all speakers to deliver greater accuracy to the mix position in any room; 12 bands of Room EQ, Delay, Level per speaker
• Per-speaker, 8-Band User EQ allows standard and customized response curves such as X-Curve and compensation for perforated screen transmission loss
• Sophisticated subwoofer integration for LFE channels and bass management
• Variable Audio/Video Sync delay allows compensation for video display latency
• Stereo Aux Out with dedicated level control, EQ and talk back system allows an independent feed to be sent to talent or a remote "green room"
• Create, store and instantly recall project-specific configurations and speaker tunings
• Intuitive setup and control with included Macintosh, Windows and iOS/Android tablet software or optional Intonato Desktop Controller
• Low-noise fan for quiet operation
