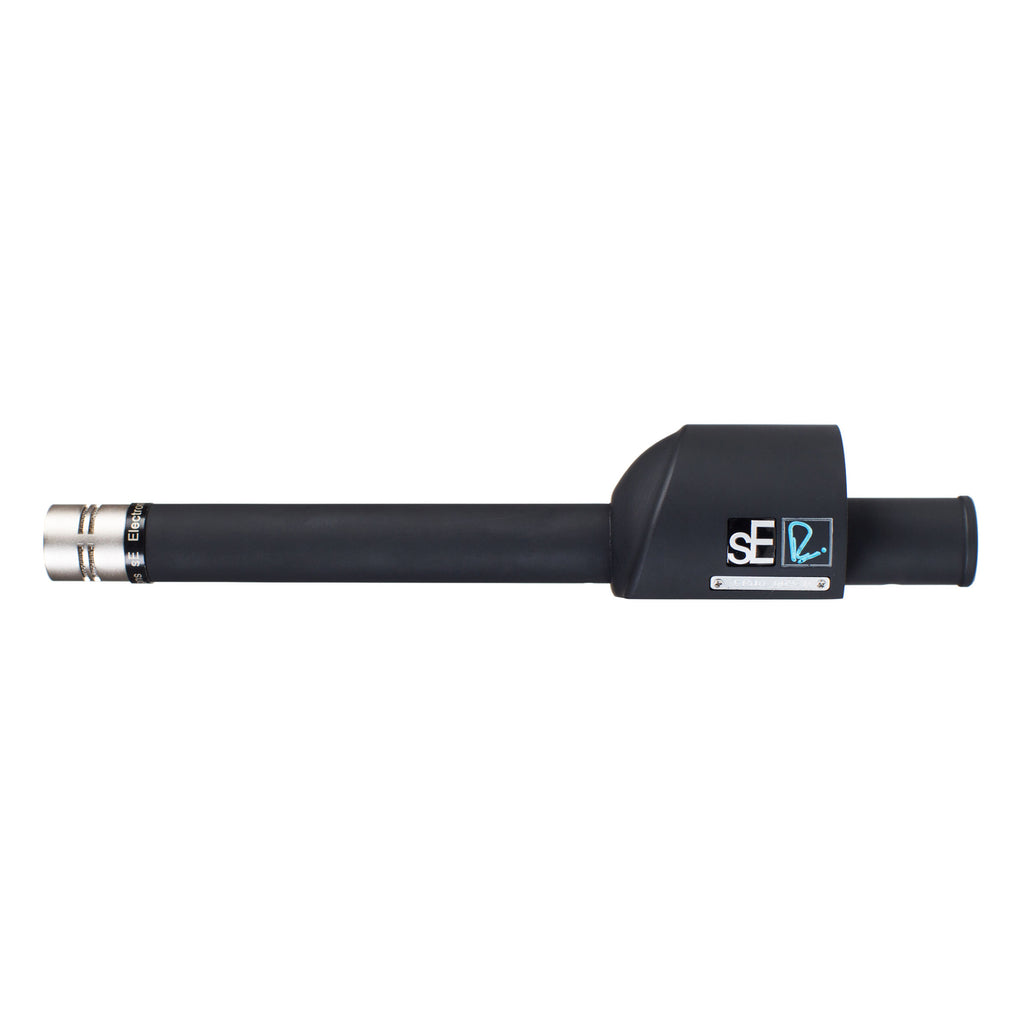

sE Electronics Small Diaphragm Microphone with Changeable Capsule

Condenser Microphones

sE Electronics Small Diaphragm Microphone with Changeable Capsule

  • Brand:sE Electronics
  • Category: Condenser Microphones
Availability: In Stock
$1,199.00
Compare

The Small Diaphragm: -With a 15mm diaphragm (the world's smallest production gold-sputtered diaphragm), the transient response of the RN17 is unparalleled. Such a small capsule reacts extremely quickly and is therefore adept at picking up the most delicate of high-frequency content. The Massive Transformer: -Made obvious by the unusual chassis shape, the RN17's transformer is substantially larger than the norm. This full-scale transformer was custom-designed by Rupert Neve specifically for this microphone - and nobody has been designing audio transformers longer (or better) than Rupert Neve. With an audio transformer of this magnitude, the RN17 can put out astonishing clarity across all frequencies - not just the highs. The midrange is detailed and forward, the lows are full and accurate, and the whole microphone has a balance and headroom never achieved with a small-capsule microphone. Matte Black Finish: -The matte black finish minimizes the level of visual attention drawn to the microphone when used on stage or in the studio, allowing it to blend into the background. Additional Capsules: -The RN17 ships standard with a cardioid capsule, but an omnidirectional capsule is also available for purchase separately.

Specifications:

• Capsule Type: Hand-Crafted True Condenser
• Diaphragm: 17.2mm Gold/Mylar
• Directional Pattern: Cardioid (omnidirectional capsule available separately)
• Frequency range: 20 Hz - 20 kHz
• Impedance: 200 Ohms
• Sensitivity: 5.96 mV/Pa (-44.5dB)
• Sensitivity (Figure-8): 2.51 mV/Pa (-52dB)
• Max SPL: 131 dB (0.5% THD @ 1kHz)
• Signal to Noise Ratio: 76 dB
• Self Noise: 18 dB(A) (cardioid), 15 dB(A) (omni)
• Matching Connectors: XLR3F
• Power requirement: 48V phantom
• Weight: 320g / 11.32oz
• Diameter: 44 mm (transformer), 17mm (capsule)
• Length: 200 mm
