Lake People DIGI-TOOL-F622 Digital Distribution Amplifier Tool
Couldn't load pickup availability
Guaranteed Safe Checkout
Description
The F622 is a digital distribution amplifier for WCLK or AES3-id signals with a total of 2 inputs and 16 outputs. The device consists of two identical modules, each with 1 input and 8 outputs (internally switched 1 in 8 is also possible). Properties: - Inputs and outputs unbalanced (75 ohms via BNC sockets) - Highly sensitive inputs for regenerating unclean and smooth signals - High output voltages for bridging large distances - Output impedance can be switched from 75 ohms to 50 ohms via jumpers for operating dirty WCLK inputs - Switchable via jumpers to AES-3id - Switchable via jumpers to “Superclock 256 Fs” FEATURES: - digital distribution amplifier for WCLK or AES-id signals. - 2 inputs and 16 outputs. - Two identical modules with 1 input and 8 outputs. - Switched internally, 1 in 8 is also possible. - Inputs and outputs unbalanced, impedance 75 ohms via BNC sockets. - Highly sensitive inputs to regenerate dirty and blurred signals - High output voltages for bridging large distances. - Output impedance switchable from 75 ohms to 50 ohms via jumpers. - Can be switched to “Superclock 256 Fs” via jumpers. Box contents contain: - 1x DIGI TOOL F622 - 1x power cord - 1x user manual
Features
• Inputs and outputs unbalanced (75 ohms via BNC sockets)
• Highly sensitive inputs for regenerating unclean and smooth signals
• High output voltages for bridging large distances
• Output impedance can be switched from 75 ohms to 50 ohms via jumpers for operating dirty WCLK inputs
• Switchable via jumpers to AES-3id
• Switchable via jumpers to “Superclock 256 Fs”
• optional MULTI-SYNC UNIT
2 modules with each 1 input and 8 outputs

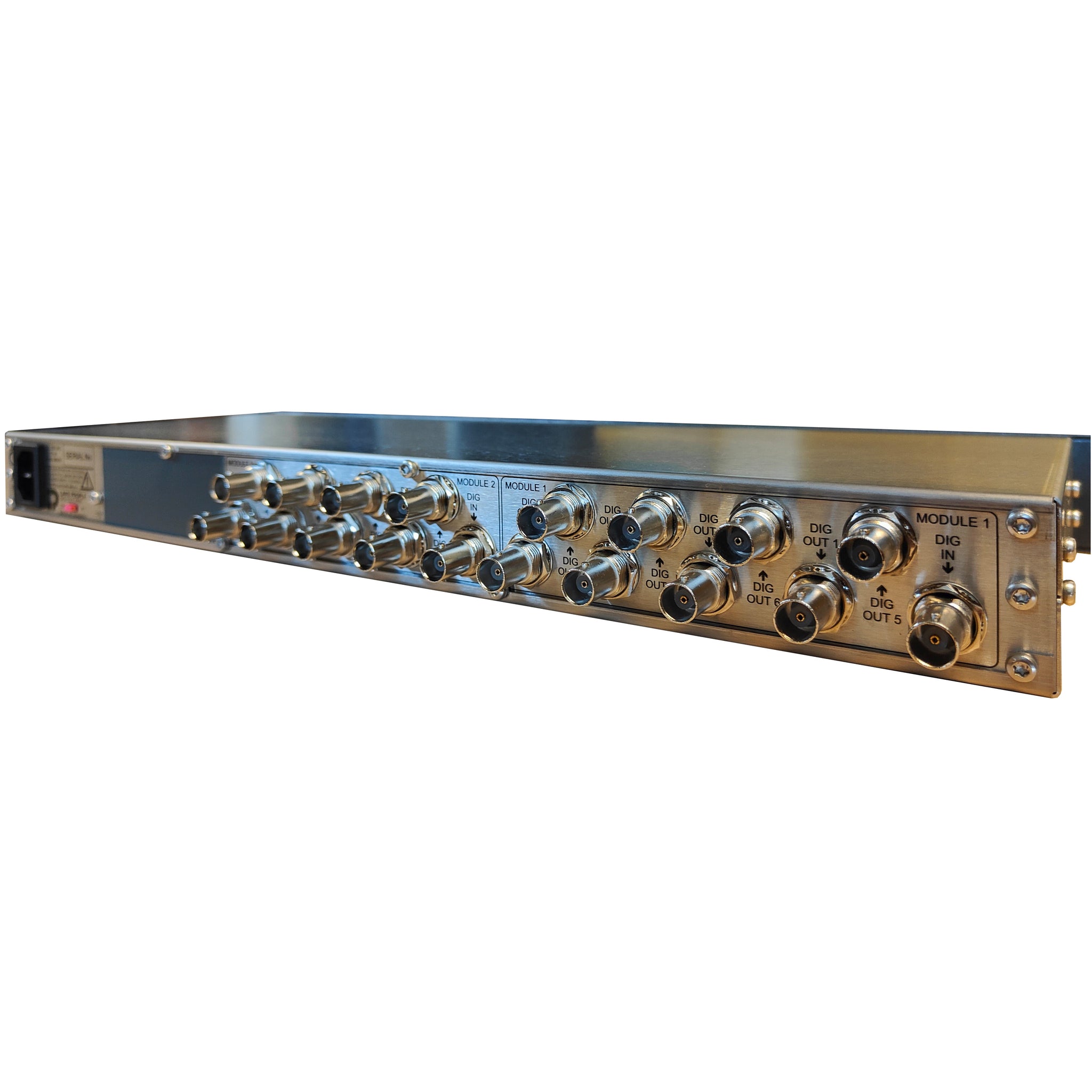

Inputs and outputs unbalanced via BNC sockets, impedance 75 ohms
High sensitive inputs to regenerate unproper or weak input signals
High output voltages to drive long distances
Jumpers to switch the output impedance from 75 ohms to 50 ohms to drive improper WCLK inputs
Jumpers to switch to AES-3id operation
Jumpers to switch to “Superclock 256 Fs”
Failsafe operation through switchable Auto-Mode Multimode power supply 90 … 260V AC

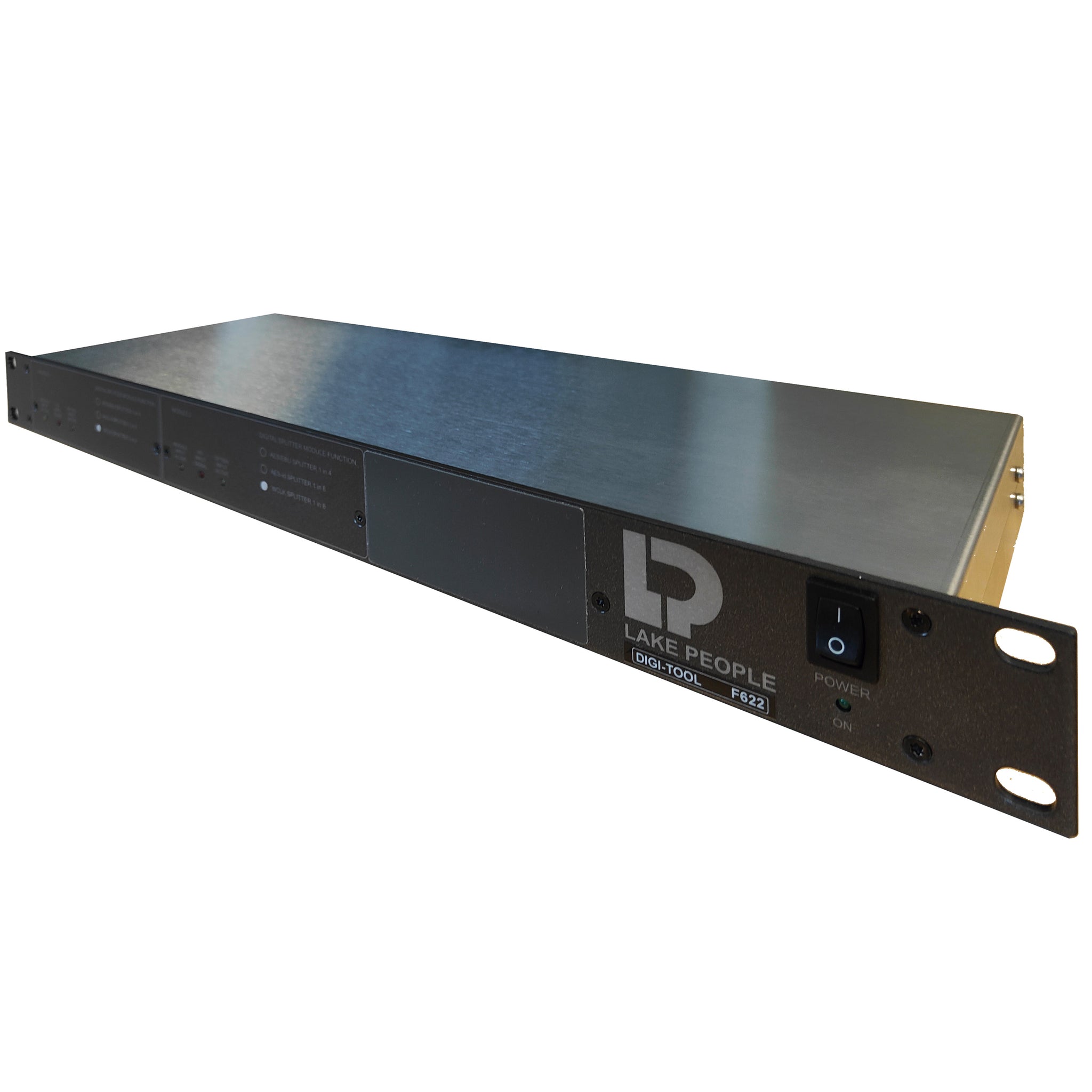

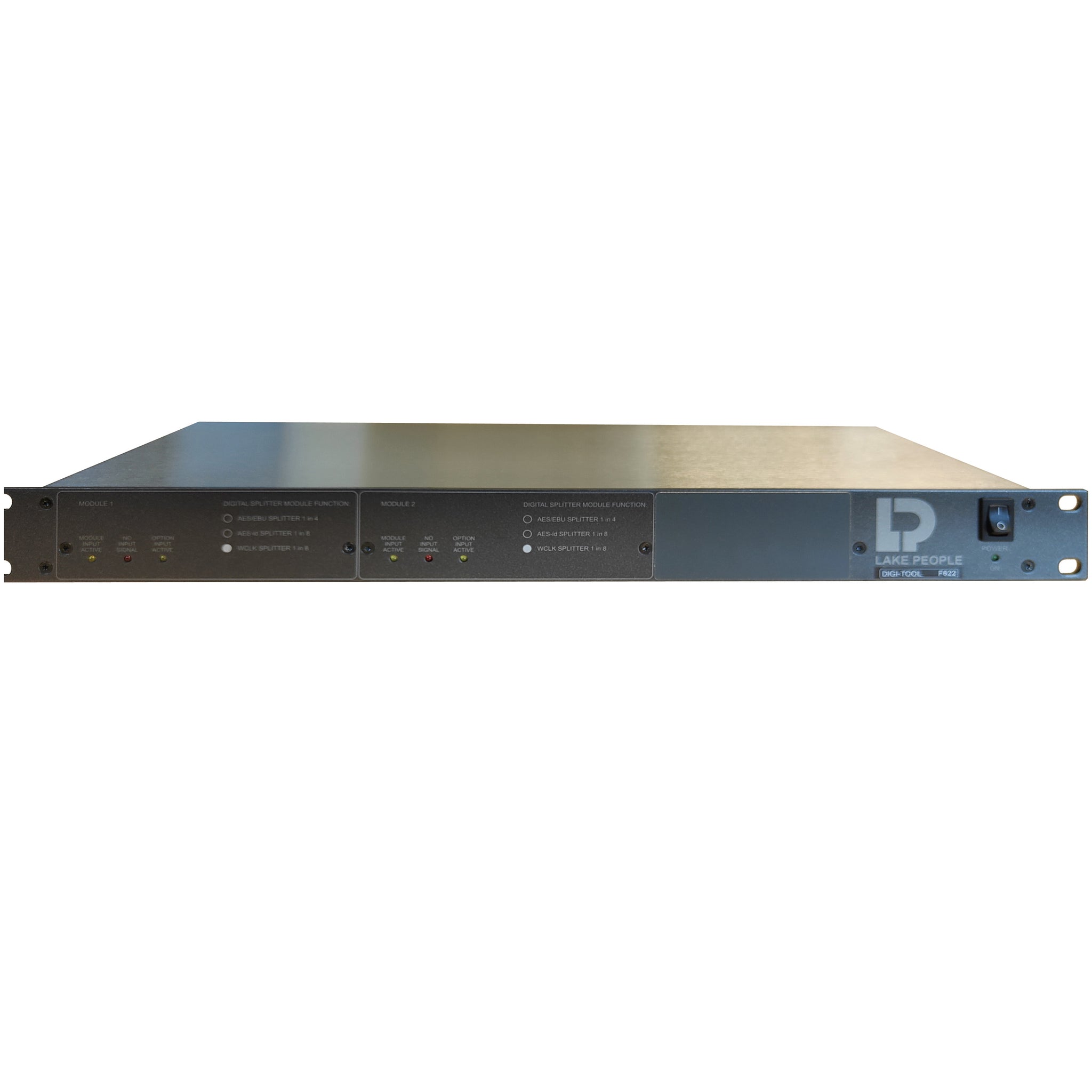

19”, 1 U stainless steel case, front dark grey
MULTI-SYNC UNIT OPTION:
The MULTI-SYNC UNIT option offers the following features:
3 external inputs, sample rate 28 ... 210 kHz, AES/EBU, AES-id, WCLK
1 AES-EBU sync output
Internal oscillators with 32, 44.1, 48, 88.2, 96, 176.4, 196 kHz
Auto-Mode, Format, Key-Lock und Mute switchable
Displays for: Sync-Source, Sample-Rate, Lock, Error, Mute, Pro/Con- Format, Auto-Mode, Key-Lock
Item number: 1006253
Dimensions: 483 x 44 x 166 mm (BxHxT)
bit depth: 24 Bit
output impedance: 50 / 75 Ohm
input sensitivity : < 200 mV
input impedance: 75 Ohm
additional features: optionale Multi-Sync Option verfügbar
housing: 19" / 1 HE

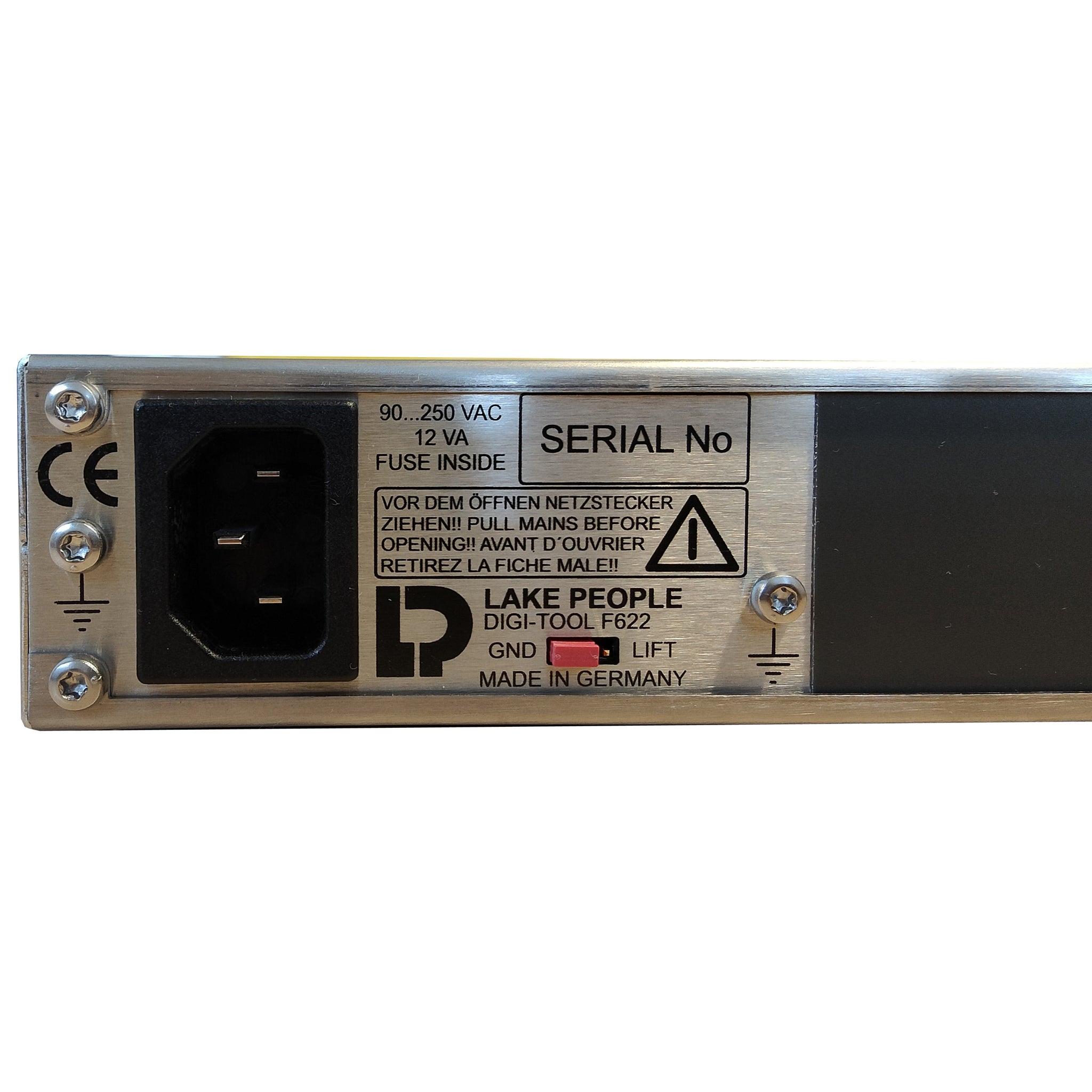

power supply: Internal 230 V / 115 V AC
SPDIF I/O: 2 / 16 (RCA)
