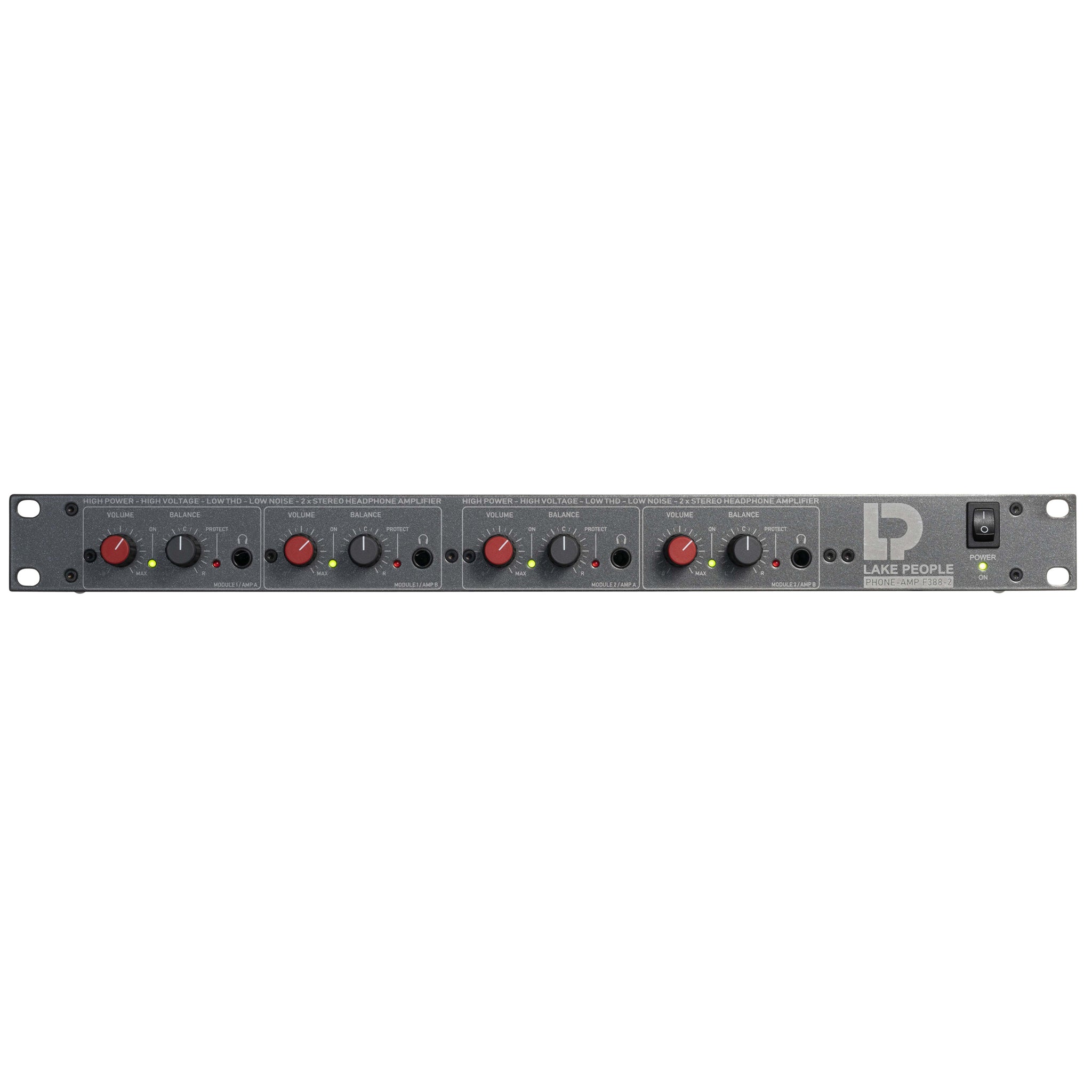

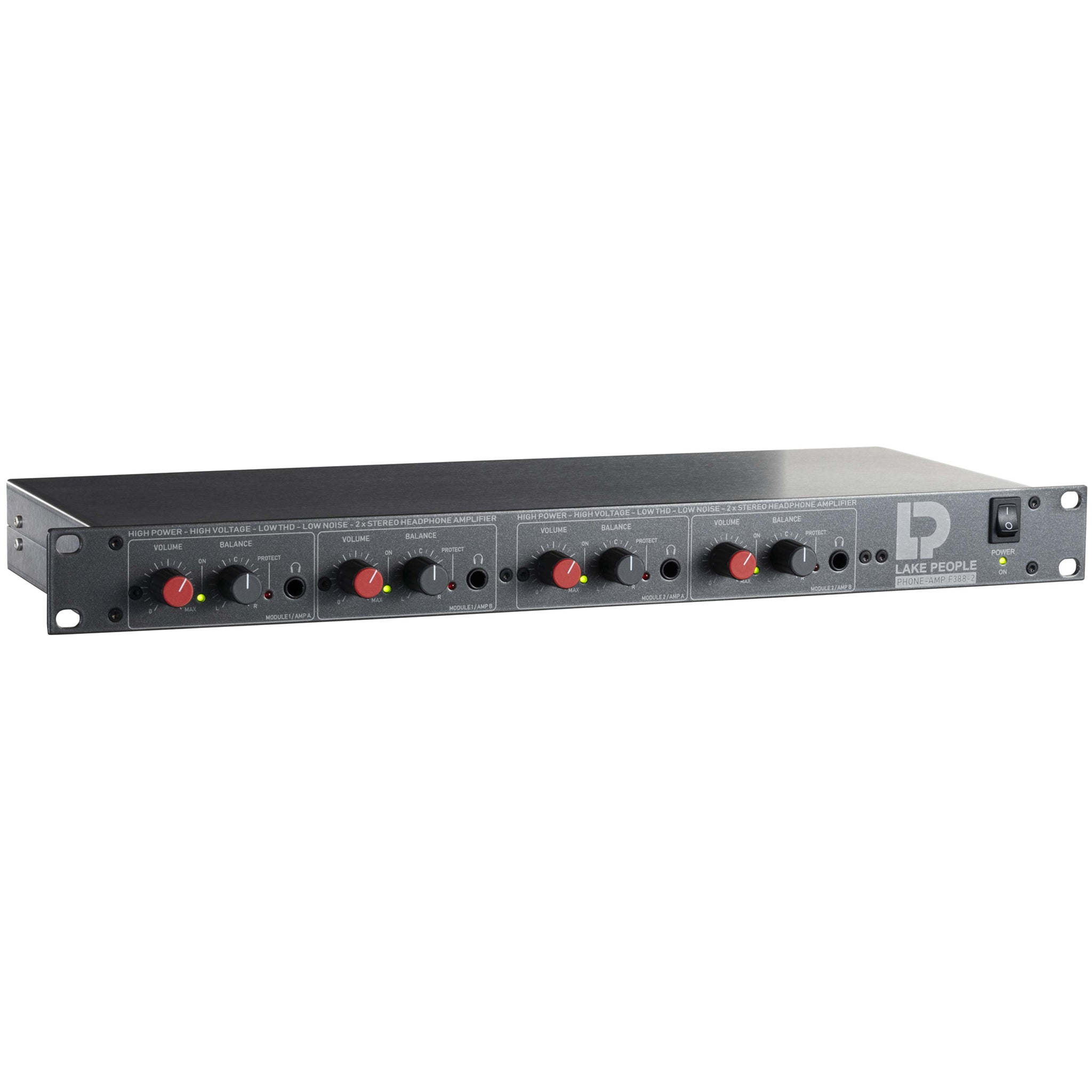

Lake People F388 2-Q Headphone Amplifier

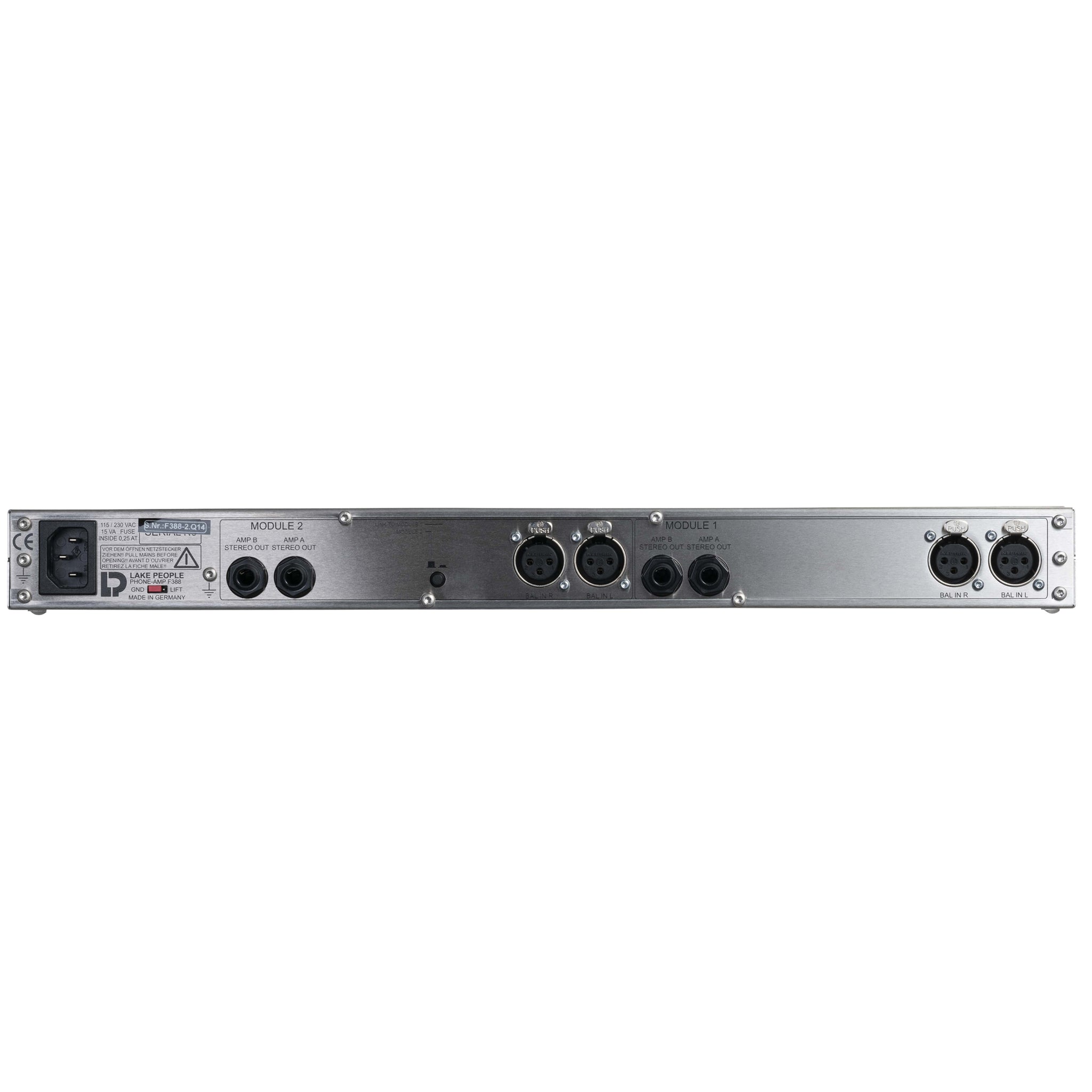

The F388-2-Q is a powerful and durable headphone amplifier in 19 "format with two + two balanced stereo inputs on the back. It feature 4 identical amp section each with a volume and a balance control. The stereo signal from module 1 can be looped through to module 2 with a link switch. Internally, Pre-Gain can be set to -12 / -6 / 0 / +6 / +12 dB to adapt the amp to virtually every source - headphone combination. The amplifiers feature a very low output impedance in order to drive low-impedance headphones without any coloration. Due to the unusual high internal operating voltage also with high-impedance headphones a more than adequate sound level is maintained.

Features

• Each stereo amplifier with additional output via 1/4” stereo jack on the back
• 4 stereo amplifiers with independent volume and balance controls
• Link switch on the back for convenient signal looping
• Each stereo amplifier with 1 headphone output on the front
• Amplification internally switchable to -12
• 2 + 2 balanced signal inputs via XLR

TECHNICAL DATA

Item number: 1006996
Dimensions: 483 x 44 x 166 mm (BxHxT)
input sensitivity: +6 dBu
input impedance: 10 kOhm
housing : 19" / 1 HE
headphone Out: 4
Line I/O : 4 / 4
max. output level: 425mW (600 Ohm) / 800 mW (300 Ohm) / 2250 mW (100 Ohm) / 1620mW (50 Ohm) / 1100 mW (32 Ohm) / 490 mW (16 Ohm)
signal-to-noise ratio (SNR) > 120 dBA
power supply Internal 230 V / 115 V AC
THD+N (@ -1 dBFs): < 0.002 %
frequency range: 5 Hz - 50 kHz (-0.5 dB)
crosstalk: < -80 dB
amplifier channels: 4
