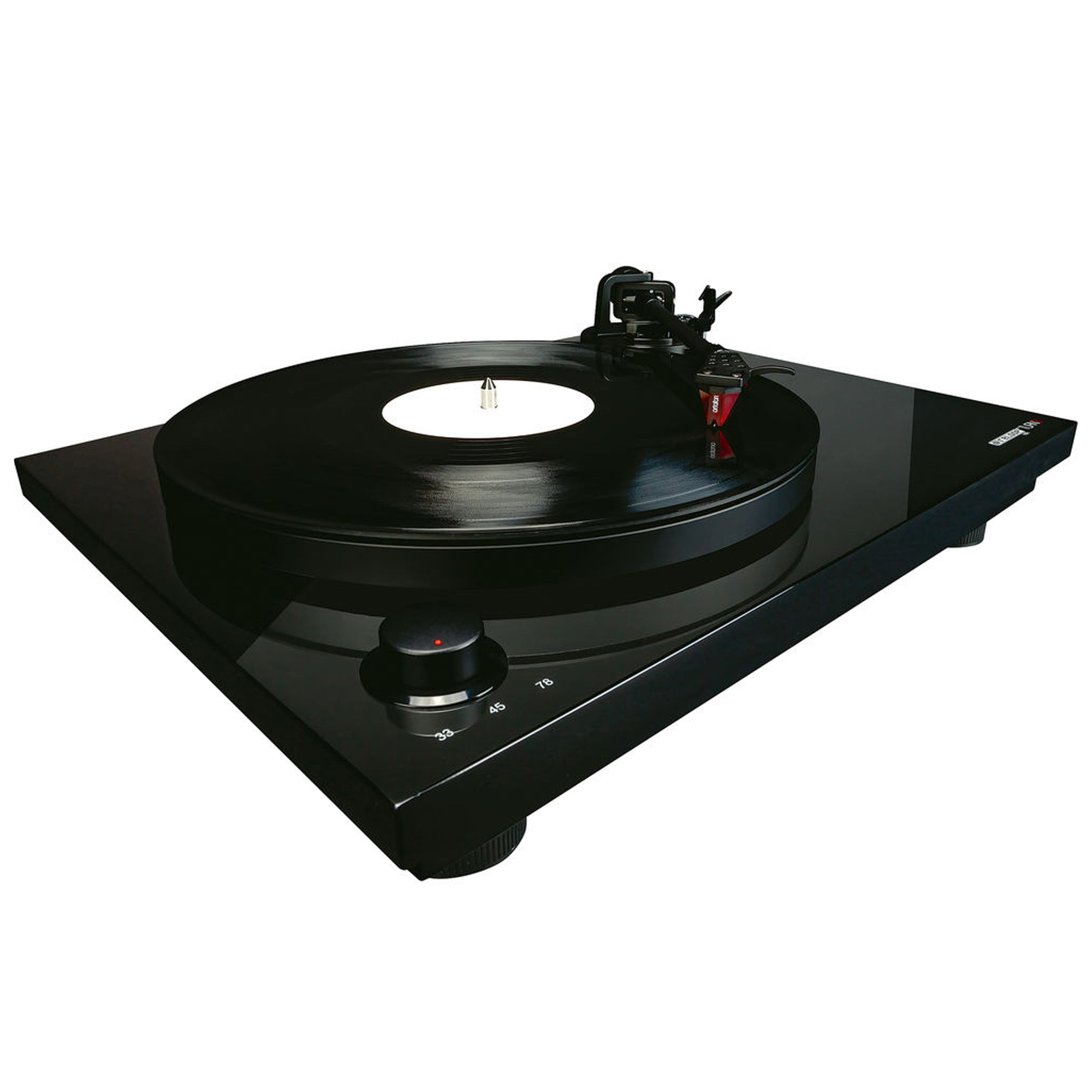

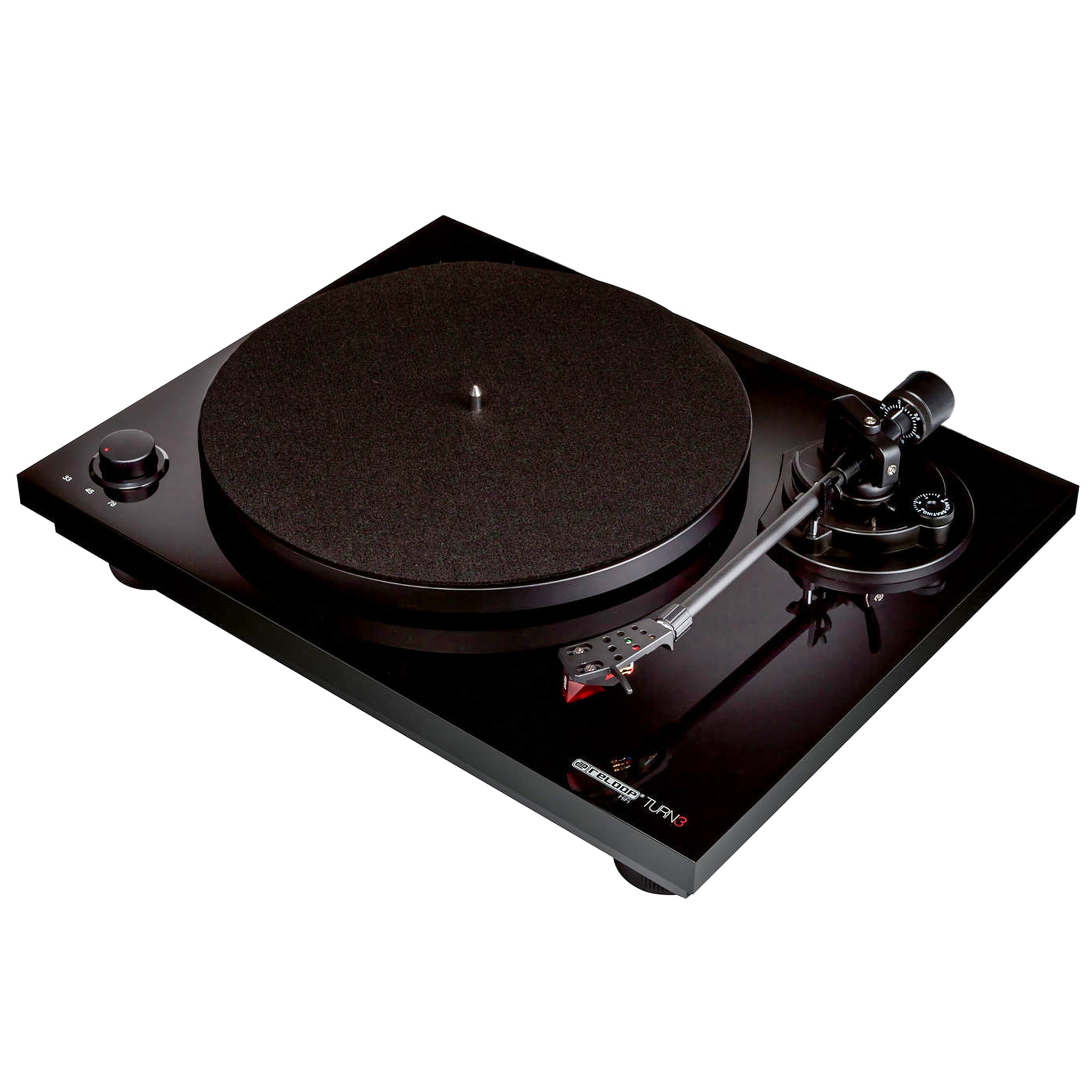

Reloop TURN-3 Premium Analogue HiFi Turntable W/Digital USB-Audio Interface

Turntables

Reloop TURN-3 Premium Analogue HiFi Turntable W/Digital USB-Audio Interface

  • Brand:Reloop
  • Category: Turntables
Availability: In Stock
$649.99
Compare

With over 20 years experience in the DJ & Pro-Audio industry, Reloop is one of the market leaders for DJ turntables and accessories. Now, for the first time, Reloop is proud to present a hifi turntable that has been especially designed for music enthusiasts and sound purists: TURN 3. The TURN 3's belt drive operation is powered by a low-vibration DC motor, keeping unwanted noise to a minimum. Pure convenience: No troublesome belt adjustments required with TURN 3. Depending on your choice of vinyl, it is possible to comfortably adjust the desired speed to 33, 45 or 78 RPM, thanks to the large speed selection knob. Even Shellac records can be played back, when using a suitable pick-up system.

FEATURES

• Belt-drive Hi-Fi Turntable
• Pre-installed Ortofon 2M Red cartridge

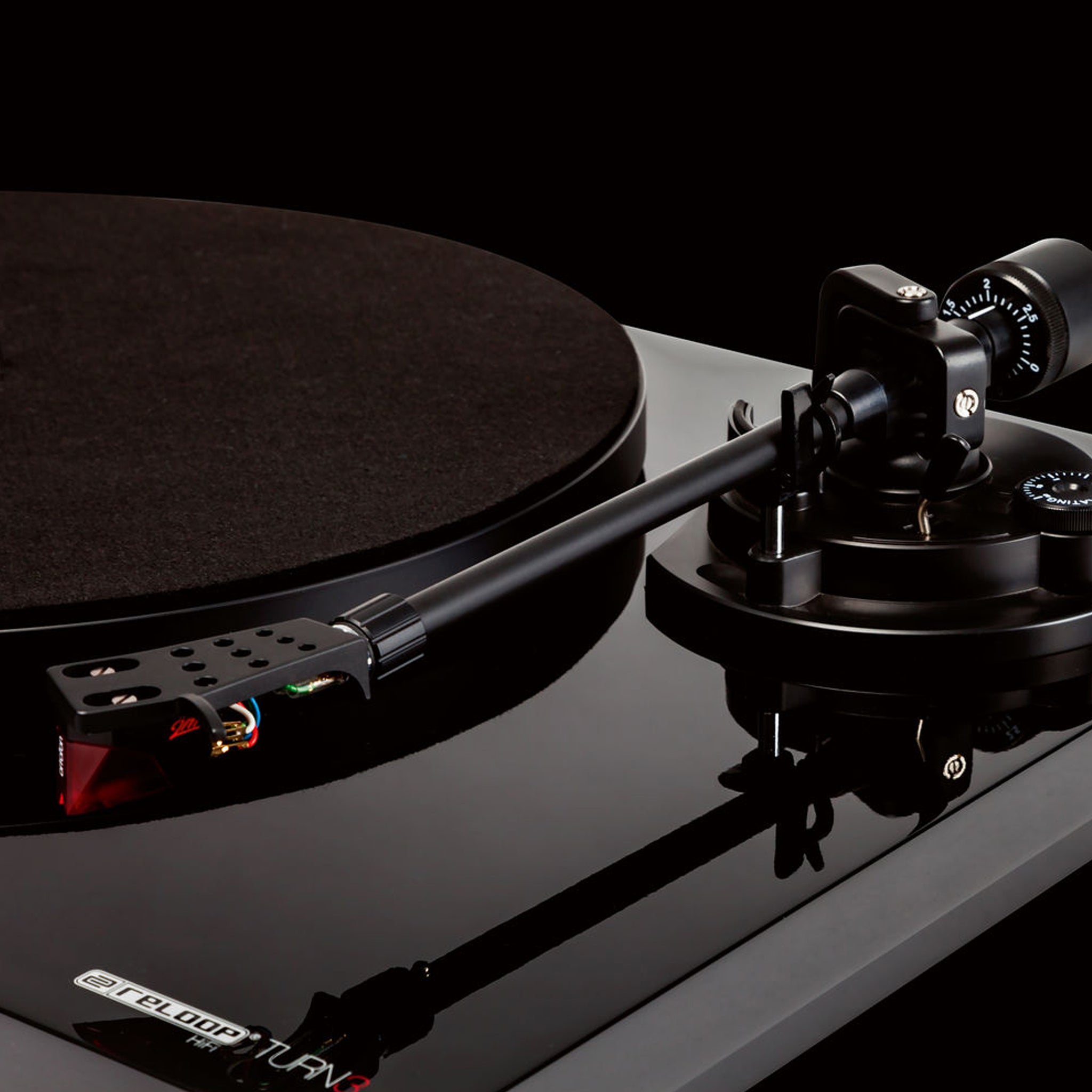

• Specially designed tonearm for optimal tracking performance
• Headshell connection provides added flexibility
• High-quality built-in Phono Stage can be switched on or off (Phono/Line output)
• USB output for recording your vinyl to a PC or Mac
• Semi-Automatic Motor Stop can be switched on or off
• Low-vibration DC motor

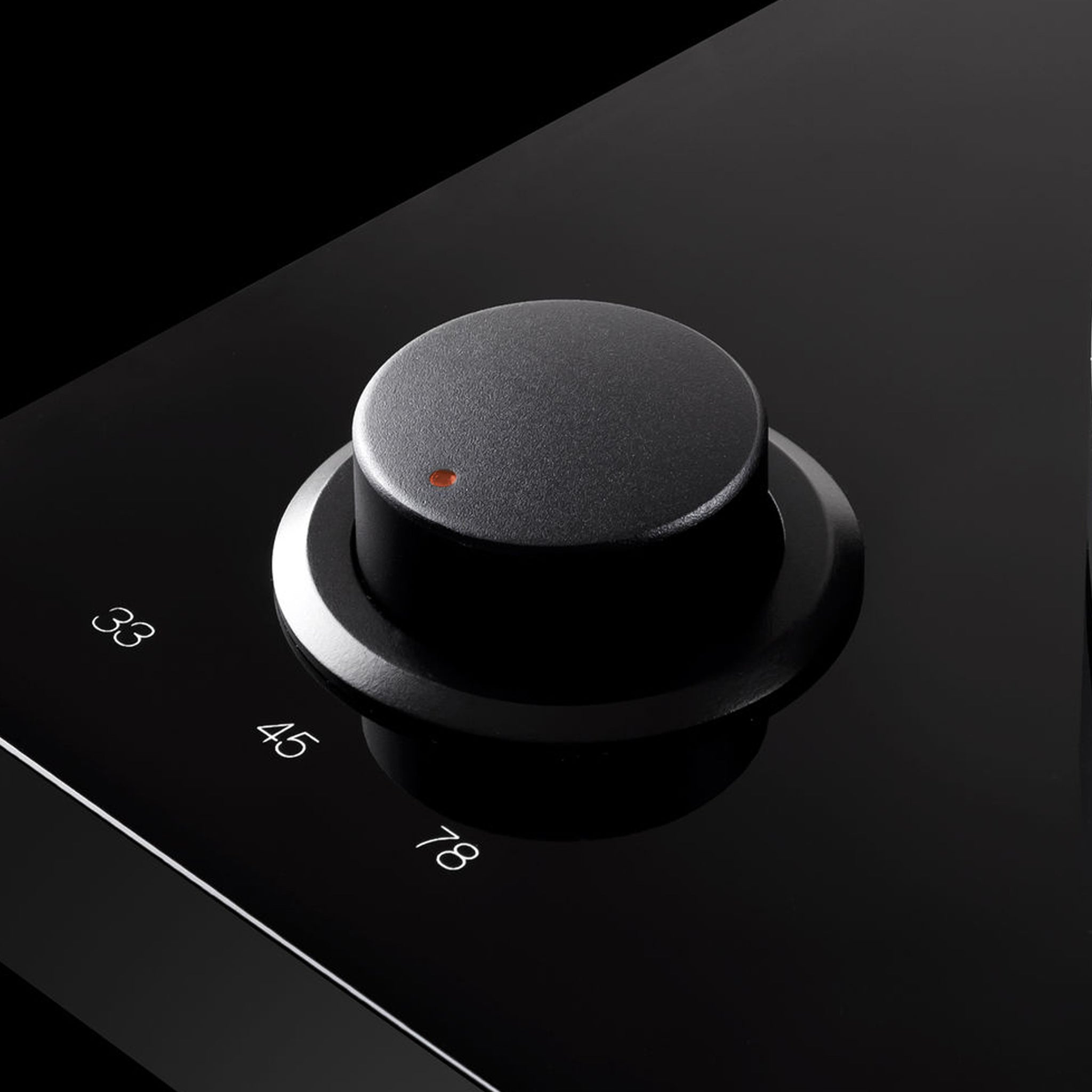

• Integrated motor control with large speed selector for conveniently selecting three different speeds (33, 45 and 78 RPM)
• External DC power supply ensures a silent running motor (100-240 V / 12V / 500mA)
• Aluminium platter with rubber damping for optimized resonance control
• Adjustable anti-skating dial for improved cartridge tracking
• Gold-plated, corrosion resistant audio outputs (all cables detachable)
• Purpose-chosen turntable feet for effective decoupling
• Gloss black piano finish

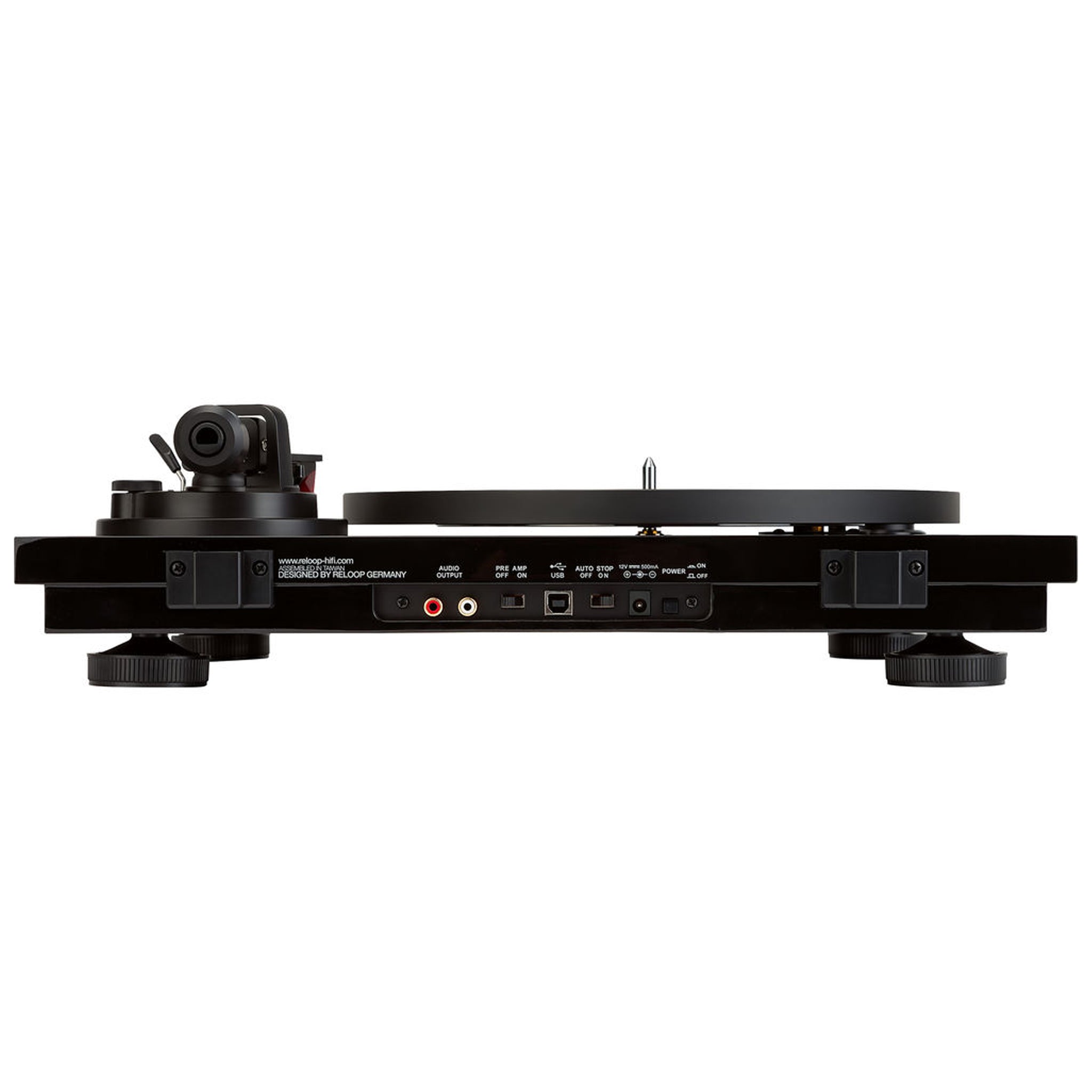

• Master power switch on rear panel
• Supplied with pre-installed Ortofon 2M Red Cartridge, Counter Weight, Dust Cover (incl. hinges), Felt-Mat, Rubberised Aluminium Platter, Aluminium 7” Adapter, RCA & USB cables and international power supply (UK/EU/US)

TECHNICAL DATA
Reloop Turn3:

• Analogue Output: Phono / Line switchable
• Connections: RCA Audio output (gold-plated), USB type B
• Phono Output Level: 4.0 mV (with Ortofon 2M Red)
• Line Output Level: 224 mV (with Ortofon 2M Red)
• Tone Arm type: Straight
• Effective Arm Length: 233 mm
• Effective tonearm mass: 24.84g
• Overhang: 20 mm
• Tracking force Range: 18mN
• Platter diameter: 300 mm
• Anti-Skating adjustment: Yes
• USB Audio Output with 48 kHz / 16-Bit: Yes
• OS Supported: Windows & Mac
• Type of cartridge: MM (Ortofon 2M Red)
• Needle pressure range: 1.8 +/- 0.2g
• Headshell weight: 20g
• Power consumption: 6W
• S/N: >60 dB or higher
• Dimensions: 450 (W) x 352 (D) x 138.7 (H) mm (incl. Dust cover)
• Weight: 6.8 kg
• Record weight: recommended 500g

Ortofon 2M Red:

• Output voltage at 1000 Hz, 5cm/sec.: 5,5 mV
• Channel balance at 1 kHz: 1,5 dB
• Channel separation at 1 kHz: 22 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range at – 3dB: 20-22.000 Hz
• Frequency response: 20-20.000 Hz + 3 / - 1 dB
• Tracking ability at 315Hz at recommended tracking force: 70 ?Mm
• Compliance, dynamic, lateral: 20 ?Mm
• Stylus type: Elliptical
• Stylus tip radius: r/R 8/18 ?Mm
• Tracking force range: 1,6-2,0g (16-20 mN)
• Tracking force, recommended: 1,8 g (18 mN)
• Tracking angle: 20°
• Internal impedance, DC resistance: 1,3 kOhm
• Internal inductance: 700 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 150-300 pF
• Cartridge colour, body/stylus: Black/Red
• Cartridge weight: 7.2 g
