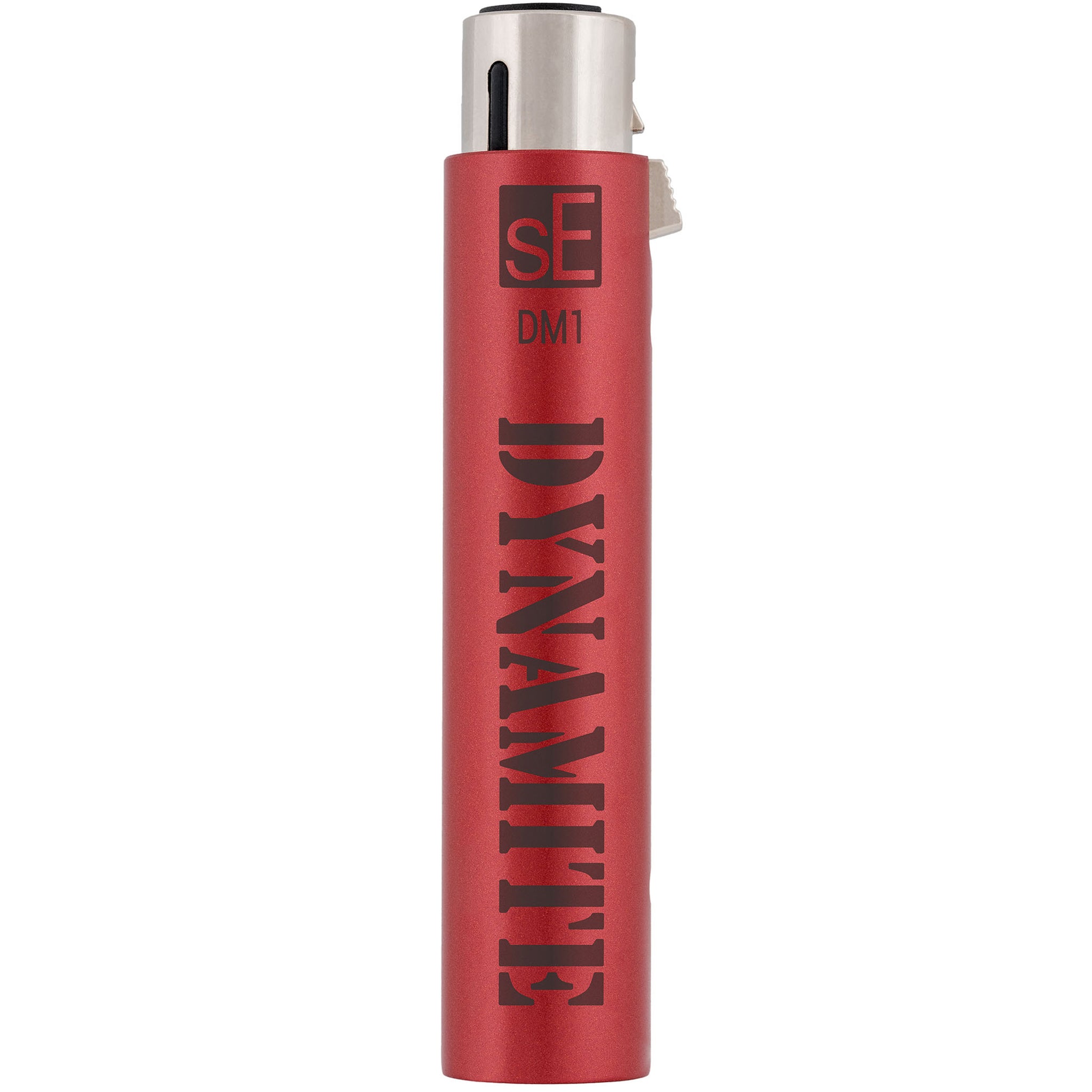

Active inline preamp with XLR male input and female output. Provides up to +28db of clean and consistent gain. Class A electronics and high-grade FET's. Low output impedance, all metal casing, and gold plated XLR connector. +28dB of clean, consistent gain, independent of load designed for neutral, balanced sound quality. -the perfect way to boost the signal of a passive microphone -gain stays consistent regardless of connected load -provides significantly improved level to your mic preamp for proper gain staging Sophisticated Class-A Electronics. -state of the art electronics and high-grade FETs provide supremely low noise -transformerless design for pristine sound quality -provides the lowest noise in its class Dedicated Output Buffer Amplifier. -provides +28dB output independent of load impedance or cable length -extremely low output impedance -drives long cable runs and can reduce susceptibility to RF interference, buzz & hum Slim, Rugged All-Metal Housing with Premium Finish. -efficient rejection of any electrical interference and noise -high-quality finish ensures a great look for many years -slim design allows for easy placement in the studio or on stage Gold-Plated XLR Connector.4 -for loss-free and reliable signal connection.
Specifications:
• Frequency Range: 10 Hz - 120,000 Hz (-0.3 dB)
• Gain: 28 dB (load 1kOhms)
• Max output level (0.5% THD): 8.3 dBV (2.6 V)
• Output noise level: 9 ?V (JIS-A)
• Powering: 48 Volts according to IEC 61938
• Electrical impedance: 135 Ohms
• Recommended load impedance: >1k Ohms
• Current consumption: 3.0 mA
• Connectivity: 3-pin male/female XLR connector
• Dimensions: Diameter: 19 mm (0.75 in.) Length: 95.5 mm (3.76 in.)
• Weight: 80 g (2.82 oz.)
