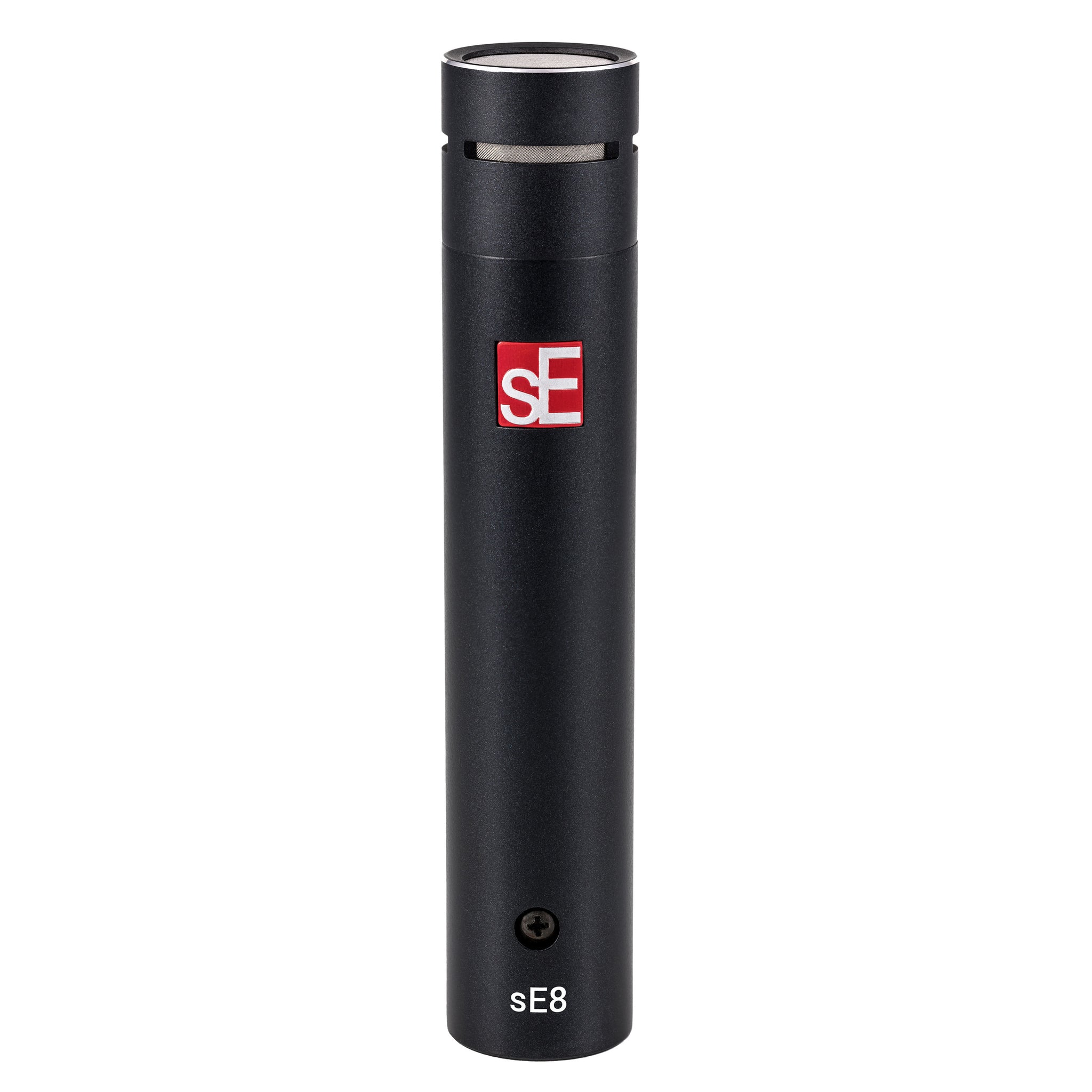

sE Electronics Small Diaphragm Cardioid Condenser Mic & Gold Sputtered Diaphragm

Condenser Microphones

sE Electronics Small Diaphragm Cardioid Condenser Mic & Gold Sputtered Diaphragm

  • Brand:sE Electronics
  • Category: Condenser Microphones
Availability: In Stock

Handcrafted True Condenser Capsule: -Gold-sputtered diaphragms ensure maximum reliability -Every capsule is handcrafted and individually tuned in our very own factory -Ultra-precision electrode design optimized for superb linearity and natural sonics -Ultra-thin 3 micron gold-sputtered diaphragm for superior transients -Newly-developed backplate design provides smooth, natural sound & truly consistent off-axis response -Sophisticated acoustic design with precision components -Avoids coloration in demanding applications The Quietest Pencil Mic In Its Class: -Sophisticated electronic design provides extremely low noise without the use of integrated circuits -Transformerless design for excellent transparency and clarity -Proven Class-A circuitry ensures a high dynamic range without distortion and brilliant transient response Two Switchable Pre-Attenuation Pads: -The -10 dB and -20 dB pad switches provide extended dynamic range, enabling a wide range of applications and close-mic techniques for brass instruments, snare drums, and more. Two switchable low-cut filters: -Selectable at either 80Hz or 160Hz, these two filters help eliminate low-frequency rumble or footfall noise, as well as help compensate for excessive bass (proximity effect) with close-mic techniques. All-Metal Housing with Gold-Plated XLR Connector, Premium Finish & Accessories: -Unlike the cheaply constructed bodies of some small-capsule microphones, the sE8's all-metal chassis provides efficient rejection of any electrical interference and noise - and the high-quality finish and gold-plated XLR connector ensures a great look and a loss-free, reliable signal connection for years to come. -The sE8 also comes standard with a newly designed mic clip that will securely attach it to any mic stand.


• Capsule Type: Hand-Crafted Small-Diaphragm True Condenser
• Polar Pattern: Cardioid
• Frequency range: 20 Hz - 20 kHz
• Sensitivity: 25 mV/Pa (-32 dBV)
• Max SPL: 139 / 149 / 159 dBSPL (0/10/20 dB pad) (0.5% THD @ 1kHz)
• Equivalent noise level: 13 dB(A)
• Dynamic range: 126 / 136 / 146 dB (0/10/20 dB Attentuation pad)
• Signal to Noise Ratio: 81 dB
• Low-cut filter: 80 / 160 Hz, 6 dB/Oct, switchable
• Attenuation Pad: 10 / 20dB, switchable
• Powering: 48 Volts according to IEC 61938
• Electrical Impedance: 110 Ohms
• Recommended load impedance: >1k Ohms
• Current consumption: 2.7 mA
• Connectivity: 3-pin male XLR connector
• Dimensions: Diameter: 23mm (0.91 in), Length 120mm (4.72 in)
• Weight: 141 g (4.97 oz.)
