sE Electronics Multi Pattern Large Diaphragm Condenser Mic & Shockmount & Filter

Condenser Microphones

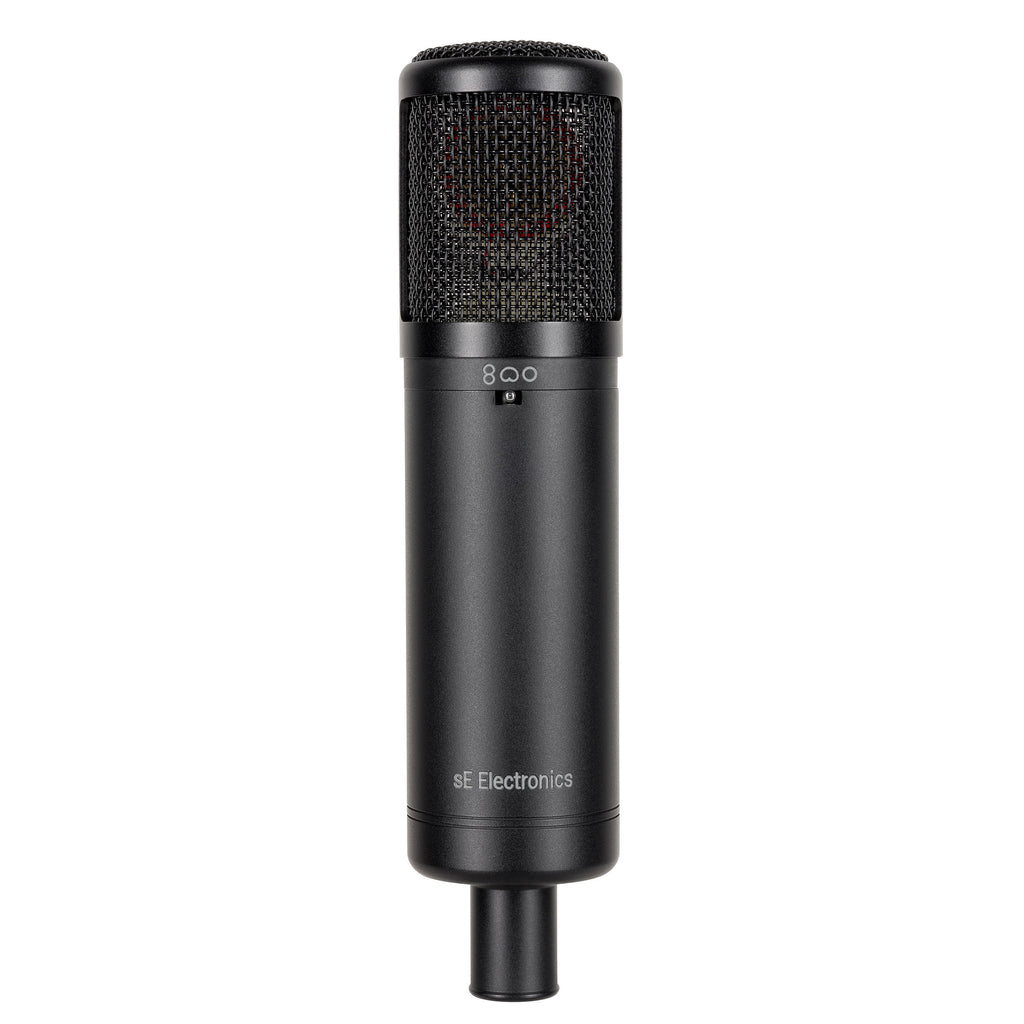

sE Electronics Multi Pattern Large Diaphragm Condenser Mic & Shockmount & Filter

  • Brand:sE Electronics
  • Category: Condenser Microphones
Availability: In Stock
$399.00
Compare

Handcrafted 1" True Condenser Capsule: -Built like the world’s finest musical instruments, every capsule is hand-crafted and individually tuned in our very own factory in Shanghai - and unlike other microphones with backplate or electret designs, the sE2300 features a true externally polarized condenser capsule, and therefore delivers the best possible performance in every aspect. Three Selectable Polar Patterns: -The 3-position Pattern Switch is located on the rear side of the microphone and allows the sE2300’s polar pattern to be changed from omnidirectional to cardioid to figure-eight. This allows for great control over the balance between direct and ambient sound. Traditional Class-A Electronic Design: -Its carefully selected, discrete components ensure brilliant sound quality on any source. The sE2300’s design still avoids using any ICs (integrated circuits) and is built to excel – not to a standard. Low noise, consistent performance and high sensitivity is provided by state-of-the-art surface-mounted electronic components with extremely tight tolerances. Two Switchable Attenuation Levels & Low-Cut Filters: -The -10 dB and -20 dB pad switches provide extended dynamic range, enabling a wide variety of applications and close-mic techniques for even the loudest instruments...think super-heavy electric guitars, fortissimo brass instruments, and heavy-footed kick drums. -Selectable at either 80Hz or 160Hz, the two low-cut filters help eliminate low-frequency rumble or footfall noise, as well as help compensate for excessive bass (proximity effect) with close-mic techniques. Custom-Built Output Transformer -Reviving the spirit of classic studio microphones, the sE2300’s custom transformer provides superb depth & weight to the overall sonic image, and the massively shielded metal housing ensures noise-free operation.

Specifications:

• Capsule Type: Hand-crafted 1" True Condenser
• Polar Pattern: Cardioid, Omni-directional, Figure-8
• Frequency range: 20 Hz - 20 kHz
• Sensitivity: 24 mV/Pa (-32.5 dBV)
• Max SPL: 126 / 136 / 146 dB (0/10/20 dB pad) (0.5% THD @ 1kHz)
• Equivalent noise level: 9 dB(A)
• Dynamic range: 117 / 127 / 137 dB (0/10/20 dB Attentuation pad)
• Signal to Noise Ratio: 85 dB
• Low-cut filter: 80 / 160 Hz, 6 dB/Oct, switchable
• Attenuation Pad: 10 / 20 dB, switchable
• Powering: 48 Volts according to IEC 61938
• Electrical Impedance: 40 Ohms
• Recommended load impedance: >1k Ohms
• Current consumption: 4.8 mA
• Connectivity: 3-pin male XLR connector
• Dimensions: Diameter: 51mm (2.01 in), Length 215mm (8.46 in)
• Weight: 611 g (21.55 oz.)
