sE Electronics Dual Tube Cardioid Condenser Microphone with Shockmount and Case

Condenser Microphones

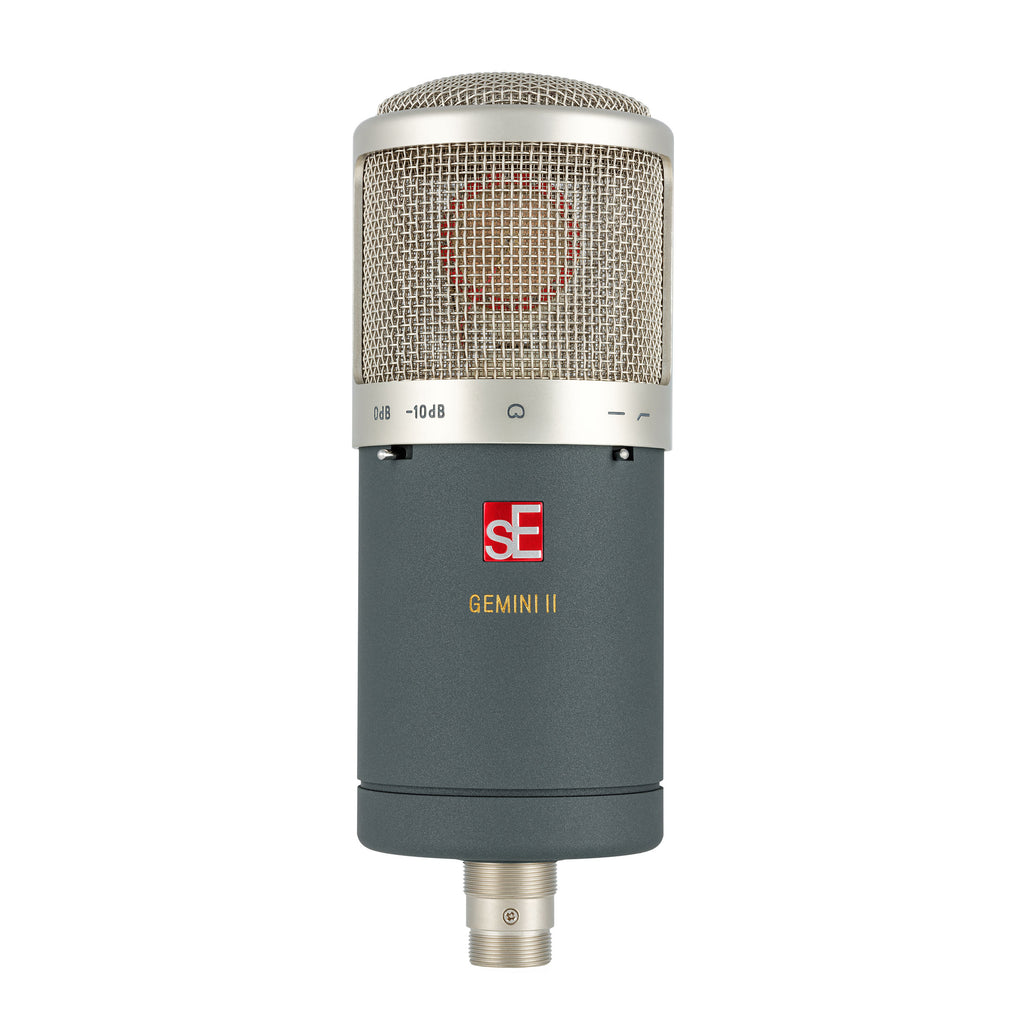

sE Electronics Dual Tube Cardioid Condenser Microphone with Shockmount and Case

  • Brand:sE Electronics
  • Category: Condenser Microphones
Availability: In Stock
$1,699.00
Compare

Dual Tube design, input tube is a 12AX7 and output tube is a 12AU7. Bass cut filter and -10db pad. Hand crafted true condenser capsule. 35mm gold/mylar diaphragm. Cardioid directional pattern. 20hz to 20khz frequency range with 35.48mV/Pa (-29db) sensitivity. 135/145 Max SPL and 75 db signal to noise ratio. 19 db self-noise, 150hz pass filter switch, an -10db preattenuation pad. Dedicated power supply unit included The Gemini Concept: Dual-Tube Design -Most microphones use a transformer to optimize the mic's output impedance and couple the mic to the mic preamplifier. With the Gemini II, this optimization is accomplished with a second vacuum tube, negating any high frequency roll off typically incurred with a transformer. -This provides the Gemini II with a sparkling, pristine high-end typically only found in the most expensive solid-state microphones, while maintaining the rich, thick tonality of a tube mic. Not just for vocals, the bass cut filter and -10dB pad make the Gemini useful for loud and heavy sources like drum room mics and booming timpani. Handcrafted Capsule & Larger-Than-Life Sound: -The Gemini II has a 1 1/4” capsule that is handcrafted and individually tuned in our very own factory. -Thanks to a larger-than-life capsule, true condenser technology and ultra-precision parts, the Gemini II delivers a massive sound right out of the box. In addition, the Gemini II’s hand-made metal housing and gold-sputtered diaphragms, ensure maximum reliability in all sonic settings.

Specifications:

• Capsule Type: Hand-Crafted True Condenser
• Diaphragm: 35mm Gold/Mylar
• Directional Pattern: Cardioid
• Frequency range: 20 Hz - 20 kHz
• Impedance: 200 Ohms
• Sensitivity: 40 mV/Pa (-28 dB)
• Max SPL: 135/145 dB (0/-10 dB pad) (0.5% THD @ 1kHz)
• Signal to Noise Ratio: 81 dB
• Self-Noise: 13 dB(A)
• Pass Filter Switch: 150 Hz
• Preattenuation Pad: -10 dB
• Power Requirement: Dedicated PSU (included)
• Weight (mic): 1180g / 41.60oz
• Weight (PSU): 1970g / 69.50oz
• Tube complement: 1x 12AX7/ECC83, 1x 12AU7/ECC82
• Connector: XLR3F from PSU
