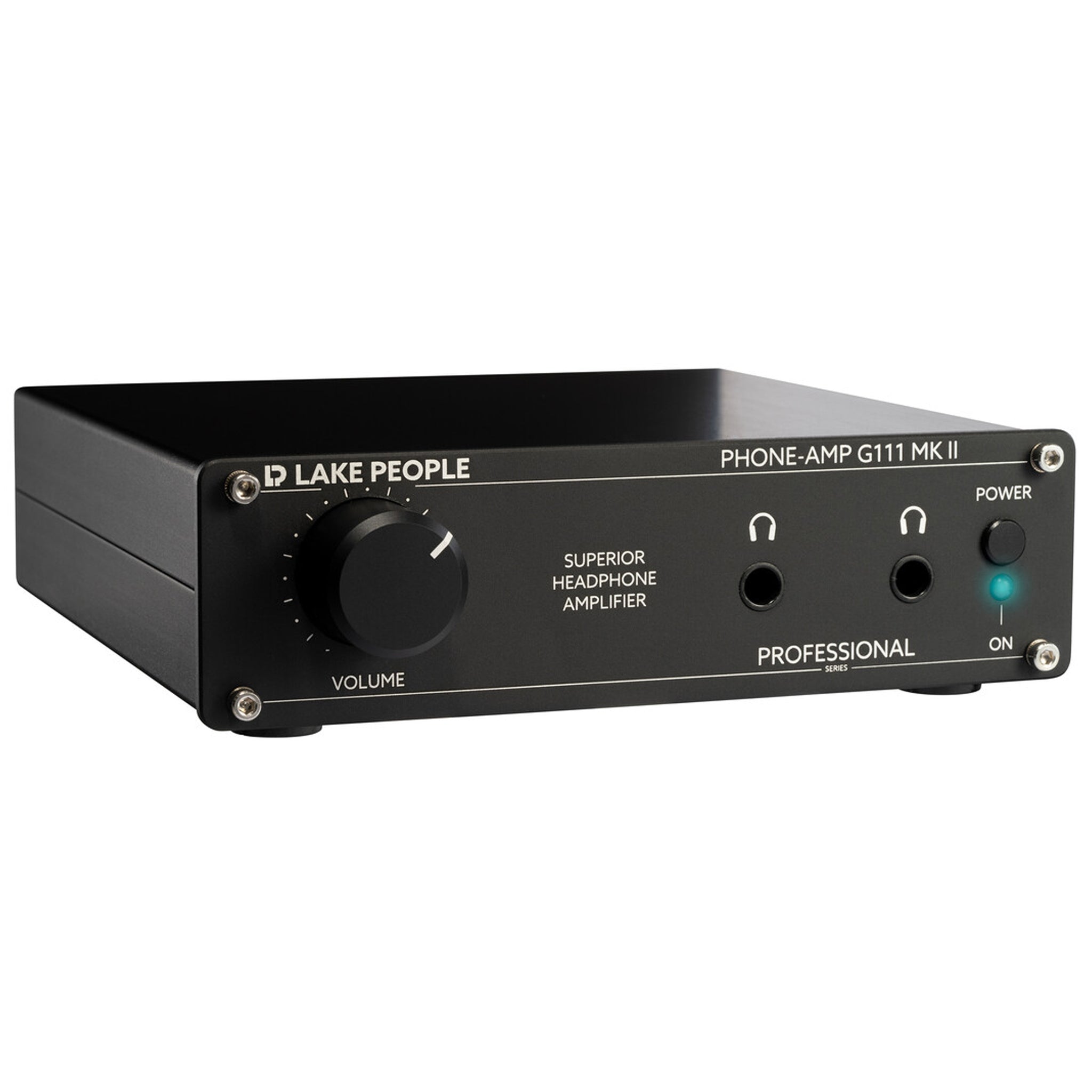

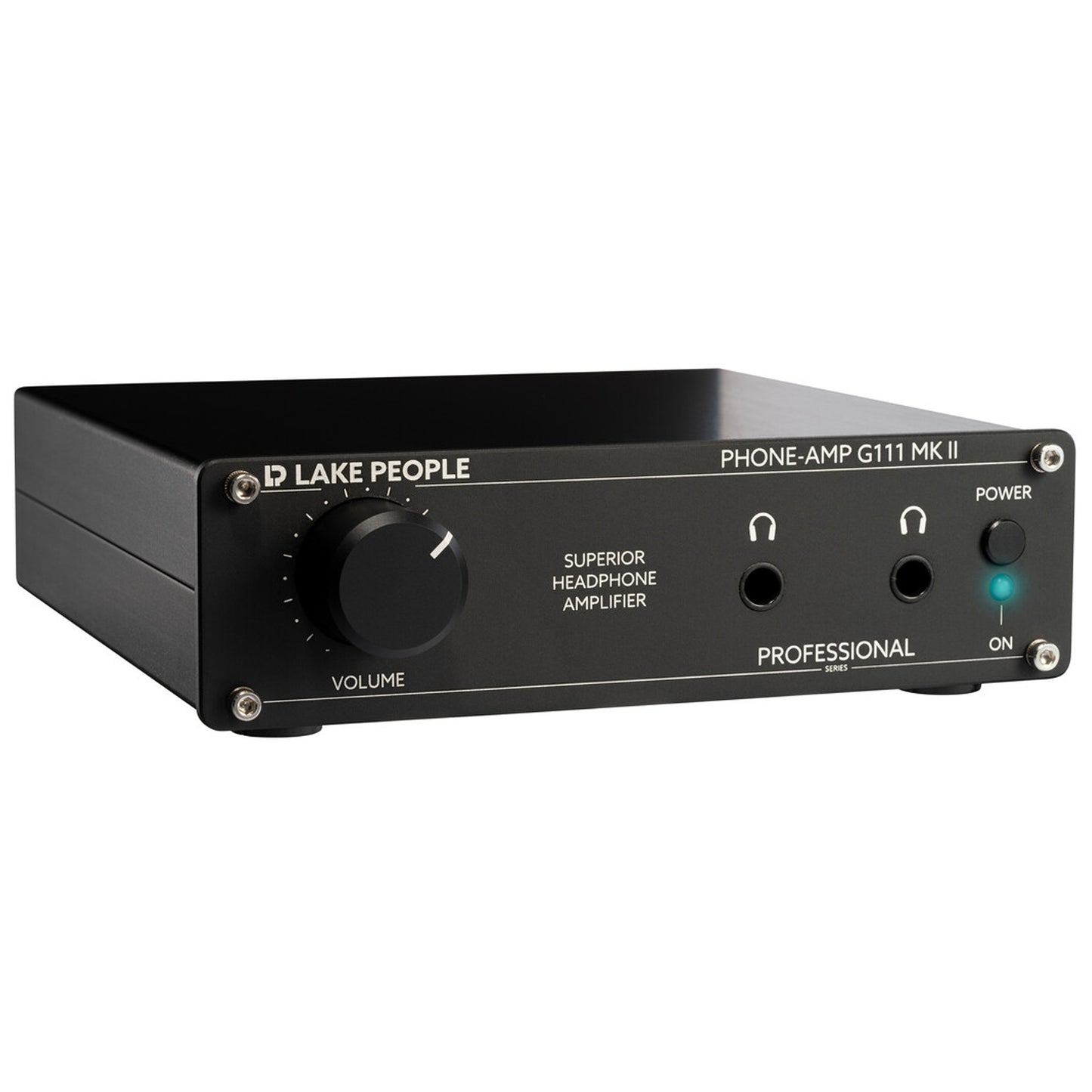

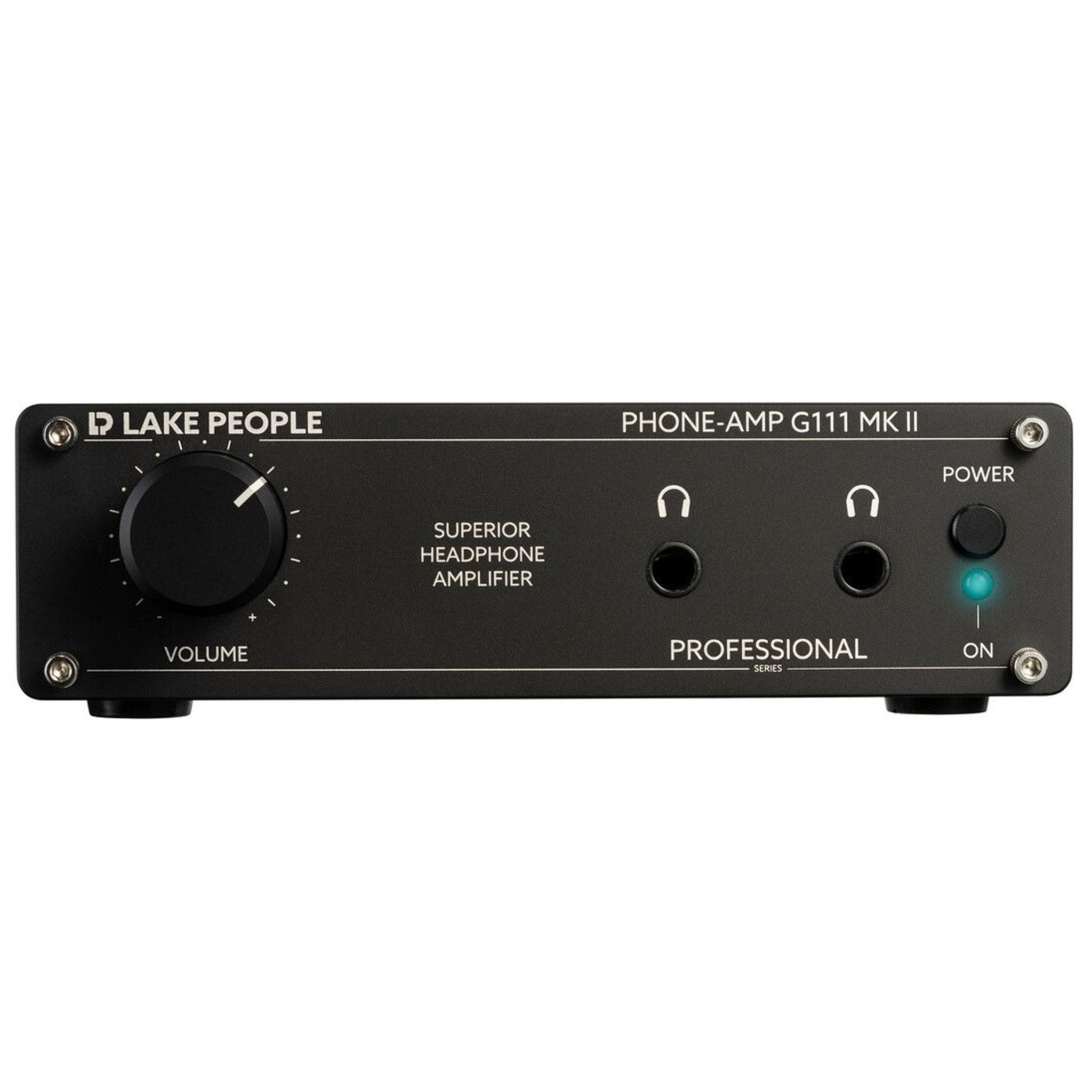

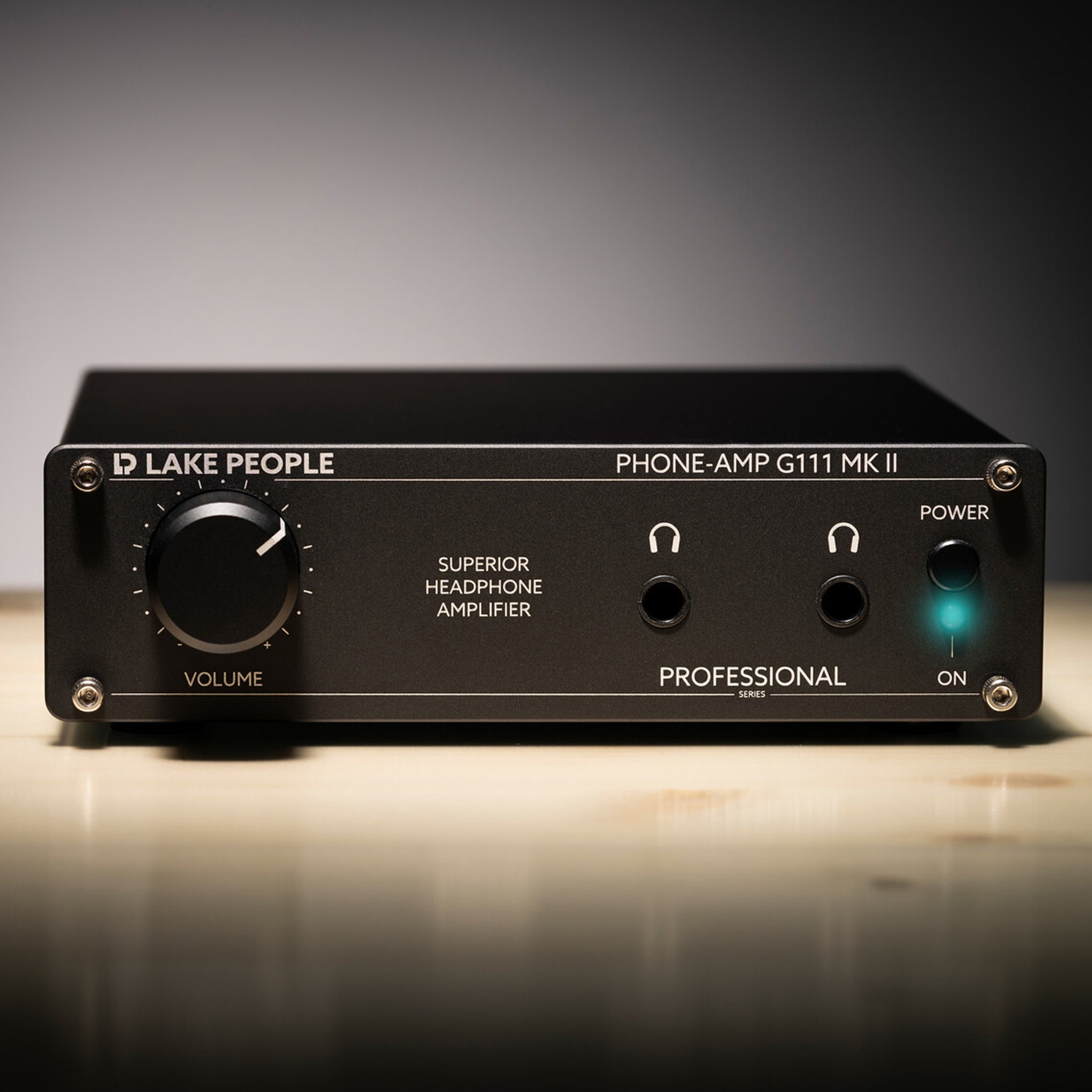

Designed to provide superior headphone amplification in a compact form factor, the G111 MKII Headphone Amplifier from Lake People delivers wide ranging headphone support and incredibly low noise thanks to its THD-optimized circuitry and oversized 60V internal operating voltage that can drive nearly any headphone technology from 32 to 600 ohms, including demanding designs, such as planar and magnetostatic types. With channel-separated circuitry crosstalk is at an absolute minimum and with an internal five-stage, pre-gain selection, it provides further control over your listening experience, helping to avoid unwanted overdrive of your headphones.

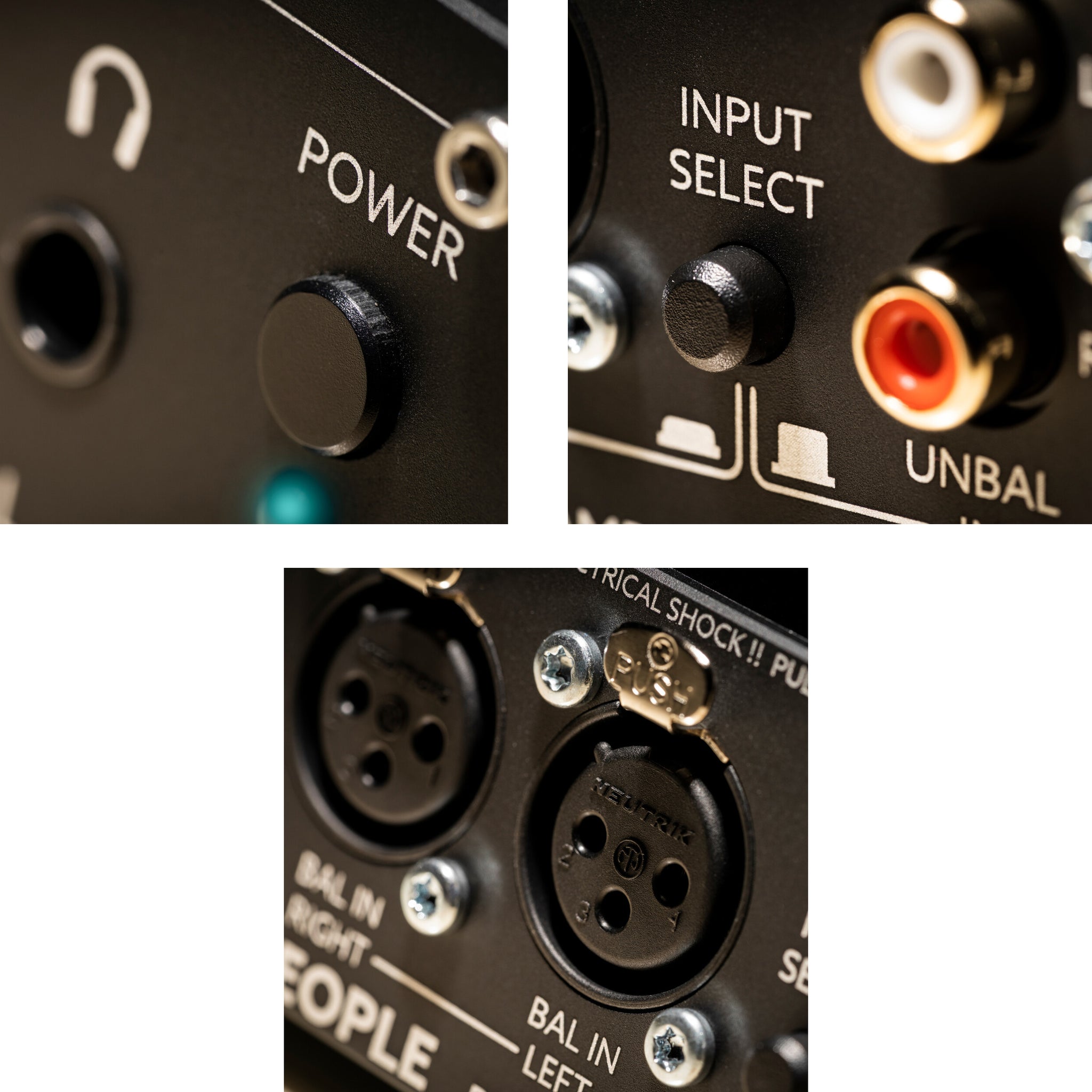

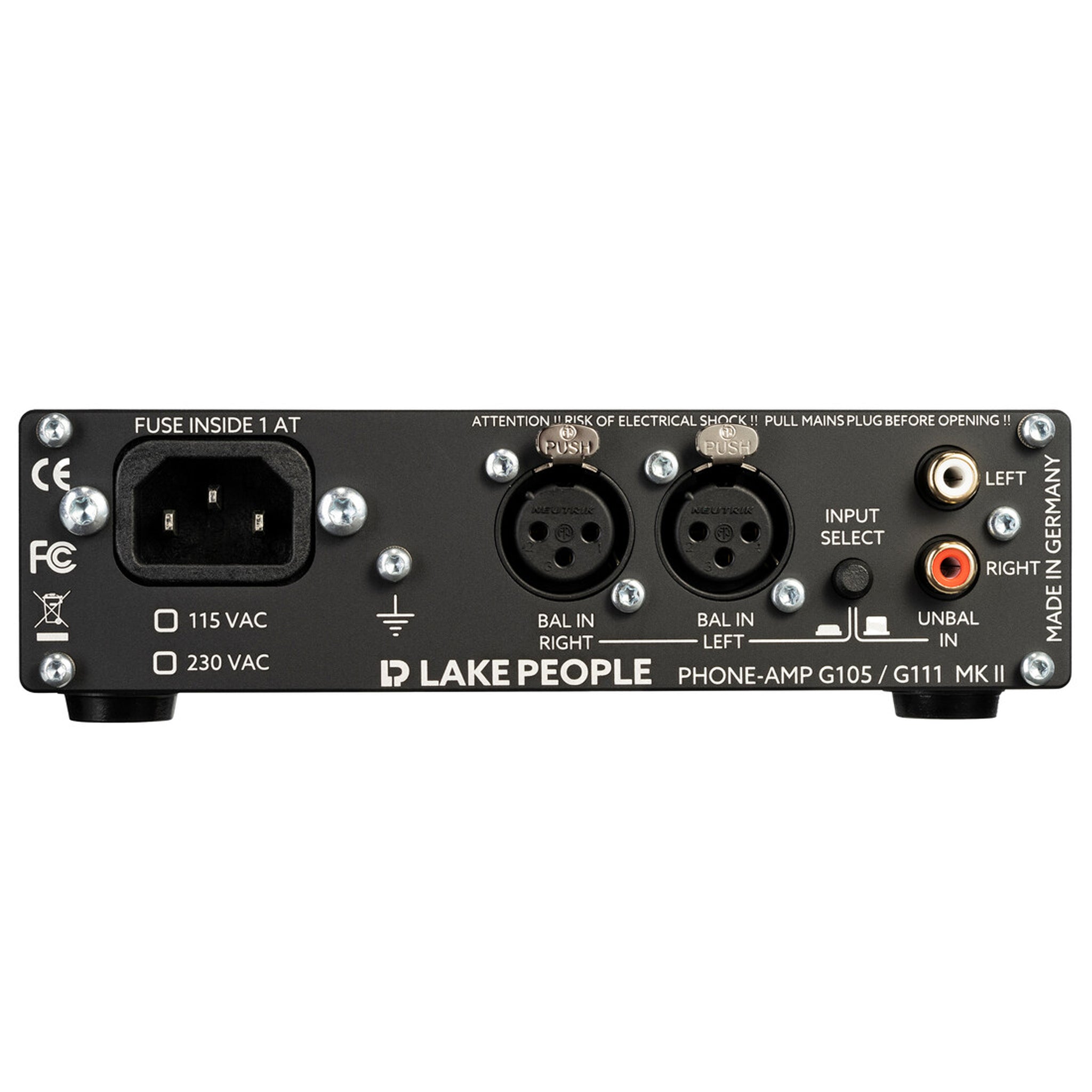

The G111 MKII sports two balanced, gold-plated XLR inputs, two unbalanced, gold-plated RCA inputs, and two 1/4" stereo headphone outputs. Built to last in Germany to exacting standards, this amp features a high-grade Alps RK 27 25mm aluminum pot for volume control, a compact yet rugged aluminum chassis, and top-quality electronics, including discrete, four transistors per channel amp circuitry, a toroidal transformer, and large, smooth capacitors to ensure the flattest possible frequency response.
Features
• Transistorized amplifiers
• Alps RK 27 potentiometer for volume control
• Pre-gain with 5-way switchable pre-amplification
• Channel-separated construction
• Discrete output stages with 4 transistors per channel (V100 technology)
• LF frequency range 150 kHz (-3 dB)
• Toroidal transformer and large screening capacities
• Outputs with switch-on delay via relay
• Frequency range: 0 Hz - 150 kHz (-3 dB)
• Input sensitivity: +6 dBu
• Input impedance: 10 kOhm
• Dynamic (SNR):> 129 dBA
• 2 Line inputs: XLR balanced / RCA unbalanced
• 2 Stereo headphone outputs: 6.3 mm jack
• Internal 230 V power supply
• Dimensions (W x H x D): 168 x 47 x 125 mm
• Colour: Black
SCOPE OF DELIVERY
1x Lake People Phone-Amp G111 MKII
1x Power Chord
1x Manual
