Lake People DIGI-TOOL-F612 Digital Distribution Amplifier Tool

The DIGI-TOOL F612 from Lake People is a distribution amplifier and digital splitter designed to deliver up to four expanded AES/EBU XLR outputs for one input at sample rates as high as 24-bit / 192 kHz. The F612 features two separate modules, one with a single XLR AES/EBU input and four XLR outputs, and another with one BNC wordclock or AES-iD sync input and eight BNC outputs. Ideal for use in modern recording and broadcast studios.

FEATURES

• digitaler Verteilverstärker für AES/EBU, AES-id, WCLK Signale
• 2 Eingängen
• 4+8 Ausgängen

LAKE PEOPLE DIGI-TOOL F612

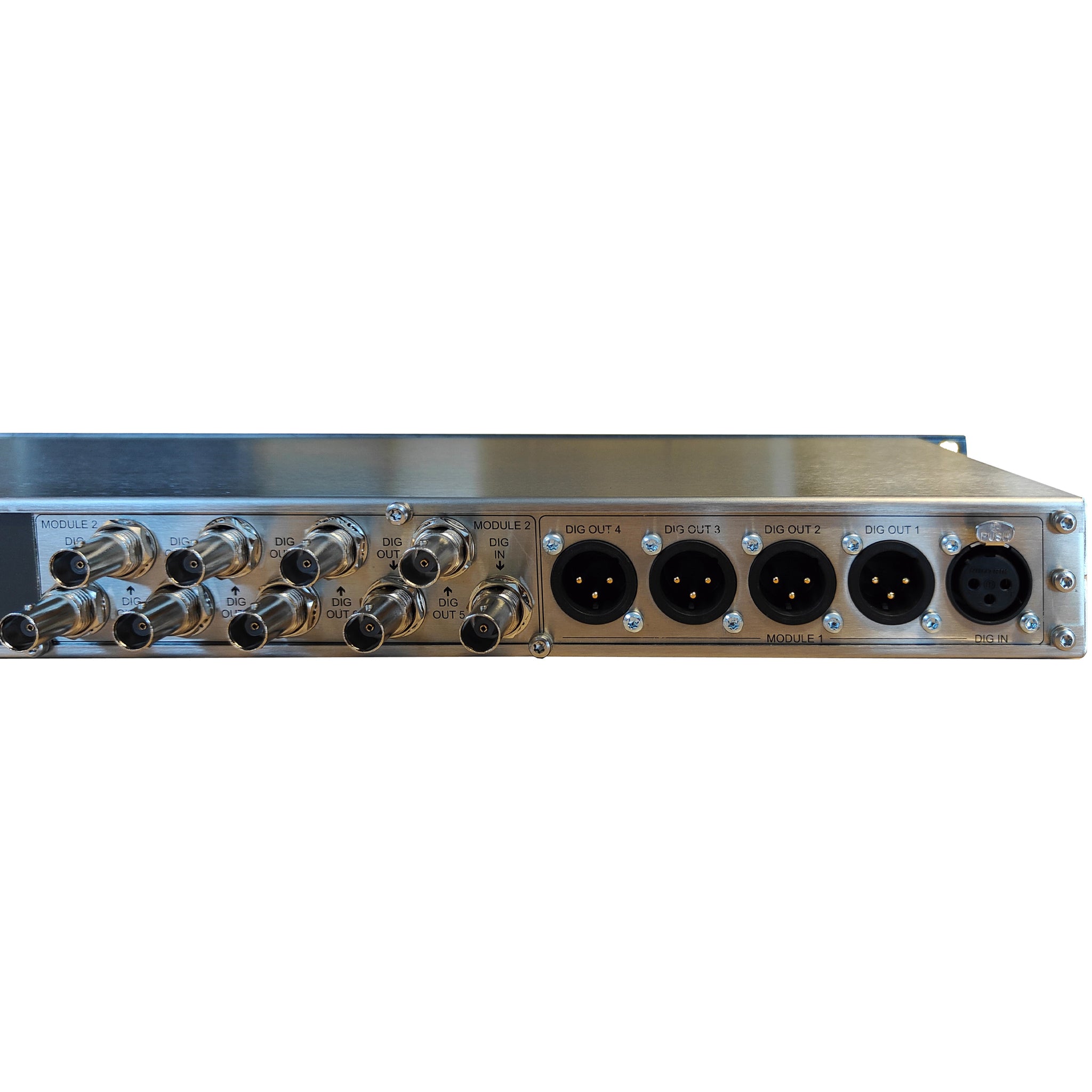

MODULE 1 (AES/EBU Splitter)
1 input, 4 outputs via XLR sockets, transformer balanced, impedance 110 ohms, according to AES 3/11
High sensitive inputs to regenerate unproper or weak input signals
High output voltages (> 4 Veff) to drive long distances
MODULE 2 (WCLK/AES-id Splitter)
1 input and 8 outputs via BNC sockets, unbalanced, impedance 75 ohms
High sensitive inputs to regenerate unproper or weak input signals
High output voltages to drive long distances
Jumpers to switch the output impedance from 75 ohms to 50 ohms to drive improper WCLK inputs
Jumpers to switch to AES-3id operation
Jumpers to switch to “Superclock 256 Fs”

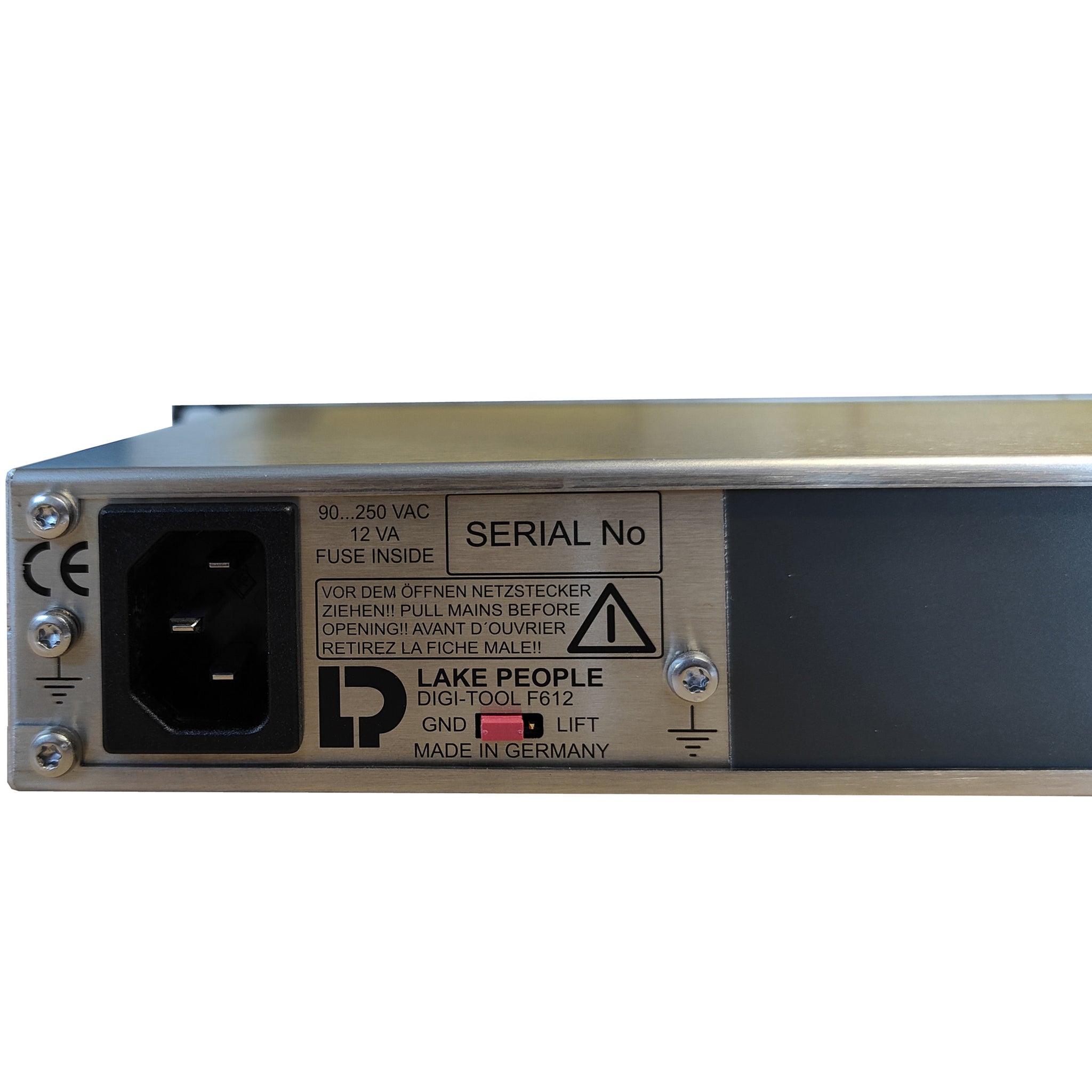

Failsafe operation through switchable Auto-Mode Multimode power supply 90 … 260V AC

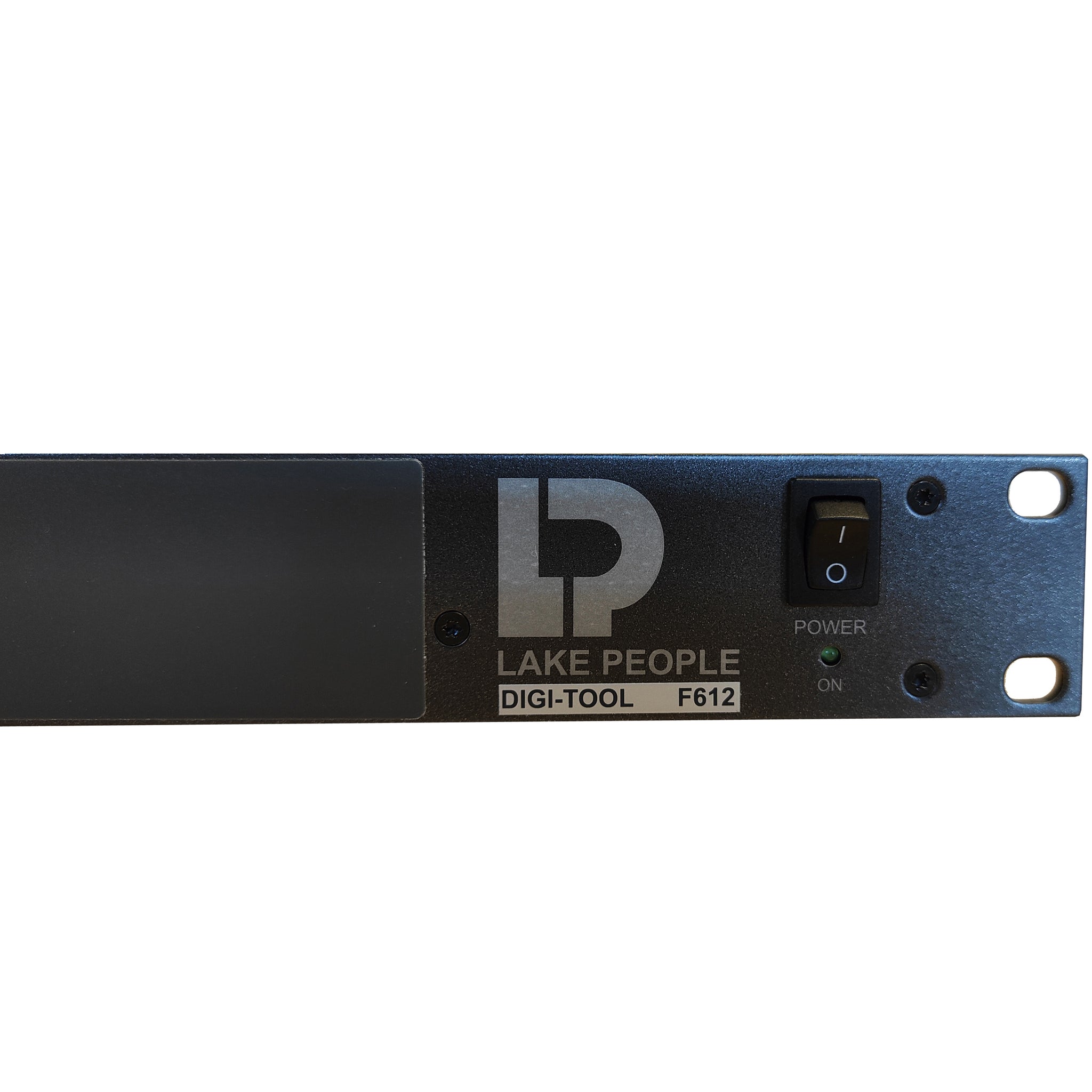

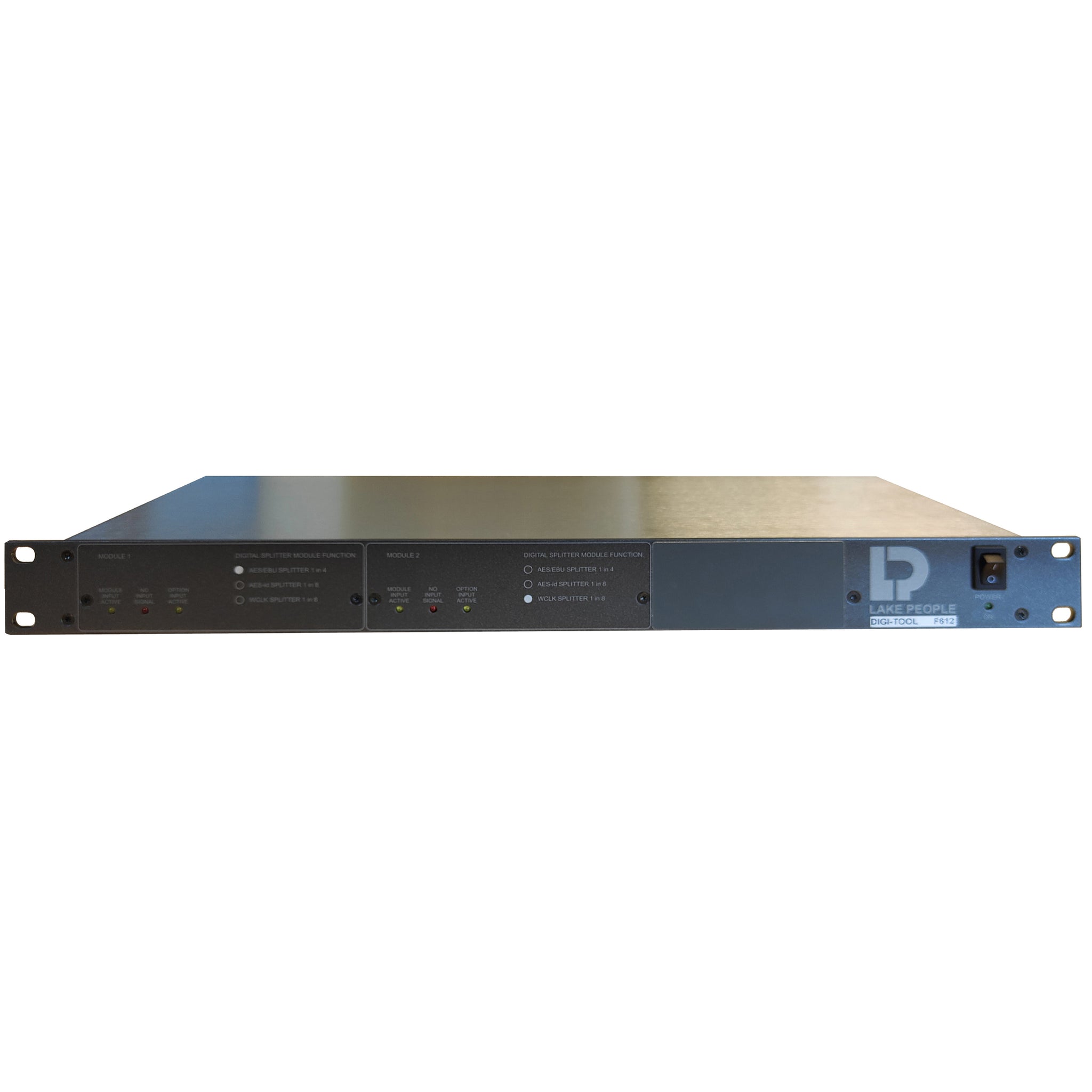

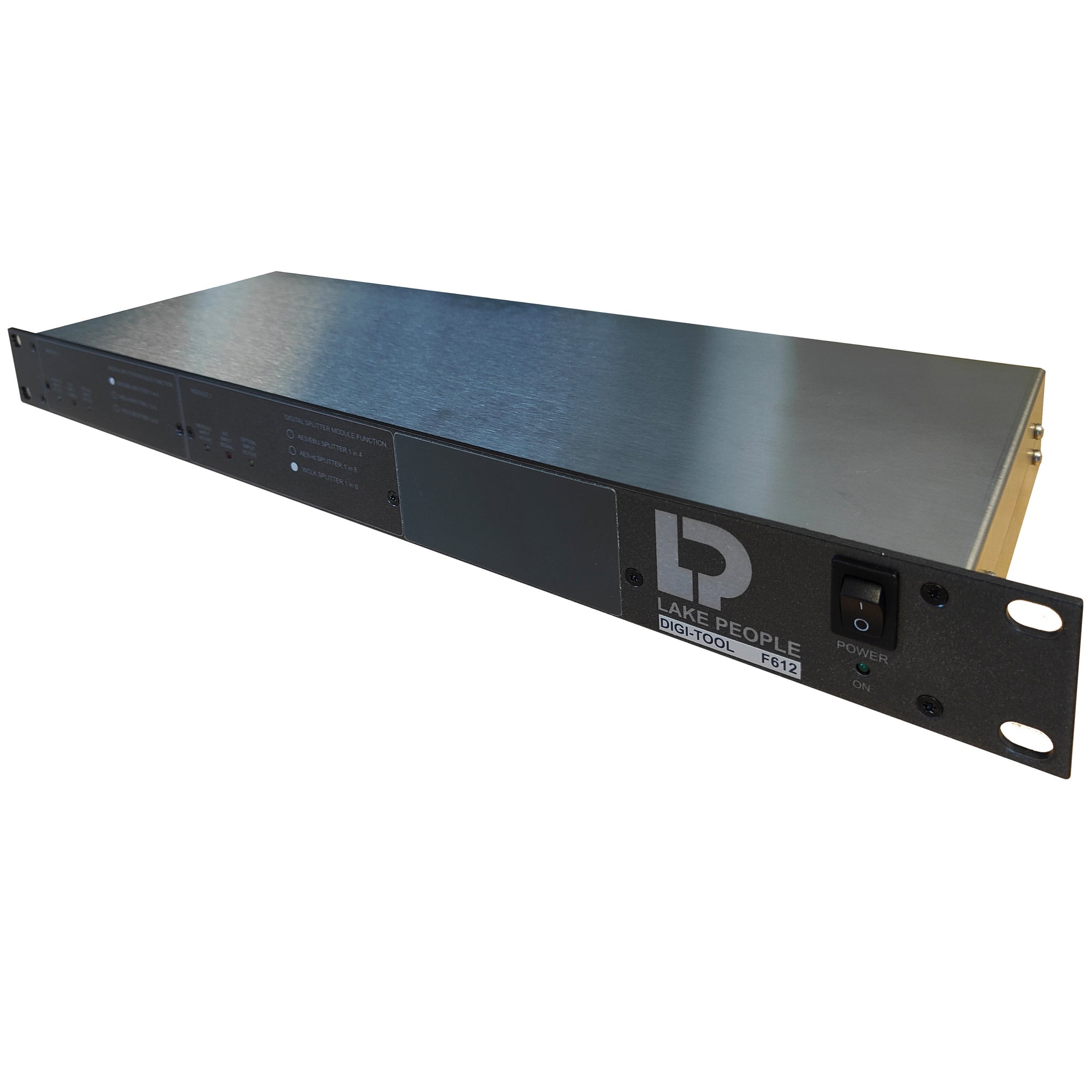

19”, 1 U stainless steel case, front dark grey

MULTI-SYNC UNIT OPTION:

The MULTI-SYNC UNIT option offers the following features:
3 external inputs, sample rate 28 ... 210 kHz, AES/EBU, AES-id, WCLK - 1 AES-EBU sync output
Internal oscillators with 32, 44.1, 48, 88.2, 96, 176.4, 196 kHz
Auto-Mode, Format, Key-Lock und Mute switchable
Displays for: Sync-Source, Sample-Rate, Lock, Error, Mute, Pro/Con- Format, Auto-Mode, Key-Lock
